Marvel horizontal band saw - model 15A9PC
SANSON MACHINERY GROUP IS PLEASED TO OFFER:

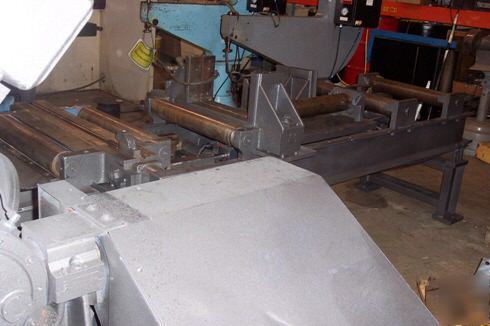

Marvel Horizontal Hydraulic Band Saw Model 15A9PC
Model No. 15A9PC MARVEL METAL CUTTING HEAVY DUTY, HYDRAULIC, HORIZONTAL, HIGH-SPEED BAND SAW MACHINE WITH AUTOMATIC BAR FEED AND 1-1/2†BLADE.
DESCRIPTION AND SPECIFICATIONS
NOTE: Metric specifications represent nearest SI Unit converted from the basic U.S. Customary Unit.
Capacity: 16†x 20†(406 x 508 mm)
Blade: 15’6†(4724 mm) long x 1-1/2†(38 mm) wide x .050 (1.3 mm) thick
Blade Tension: Hydraulically controlled. Machine stops if blade breaks.
Speed Range: 55-400 (17 to 122 m/min) blade feet per minute, infinitely variable, electrically controlled, with electric digital readout.
Feed: Exclusive combination of: (1) pressure feed; (2) traverse control, varies maximum speed at which head moves downward; (3) hydraulic compensator, virtually eliminates variations in feed caused by changing gravity force
Blade can be stopped, with all other power functions operative.
Hydraulic Machine Vise: Size of jaws 8†(203 mm) high. Includes mechanical screw adjustment to reduce clamping pressure and prevent distortion of light gauge work.
Automatic Stops: Four stops, at operator’s option, by selector switches:
Head return at completion of saw cut, entire machine stops.
Head return at completion of saw cut, blade only stops.
When bar feed has run “out of stockâ€.
Programmable Control: Automatic indexing and Manual Material Feeding (See description top of page 2).
Side guides are spring loaded with adjustable “pre-set†and are easily released by “quick-action†clamps to facilitate blade changes.
Power Brush: 4†(100 mm) diameter, powered wire brush to remove chips from blade.
Discharge Track: Heavy duty 40†(1016 mm).
Automatic and Semi-Automatic Bar Feed Loading Track: Full 10’ (3048 mm).
Motors: Main Drive: 10 H.P. 1800 RPM, totally enclosed, ball bearing, fan cooled. Hydraulic pump: 3 H.P. (2.2 kW), 1800 RPM, totally enclosed, ball bearing , fan cooled. Coolant pump: ¼ H.P. (0.2 kW), 3600 RPM, totally enclosed motor built-in integrally, AC 230/460 or 575 volt, 3 phase, 60 Hz. (Optional 50 Hz Modification M15.)
Controls: IEC fused disconnect switch and magnetic motor starters, with overload and low-voltage protection. Transformer provides low voltage control (120 volts) to all push buttons at operator’s control panel and machine lighting circuits.
Programmable Logic Controller (P.L.C.) mounted in moisture proof NEMA 12 compartment.
ELECTRICAL EQUIPMENT CONFORMS TO NATIONAL ELECTRICAL CODE NFPA 79. THE ELECTRICAL CONTROL PANEL IS U.L. LABELED
