New white-rodgers 1F97-1271 thermostat programmable

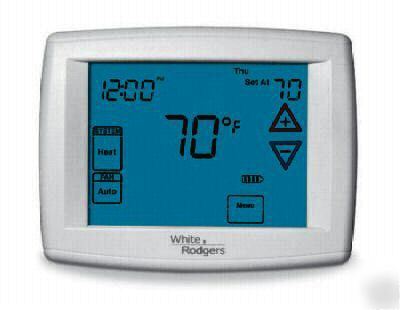

White-Rodgers 1F97-1271 Thermostat
Single Stage Heat/Cool, Programmable or Non-Programmable
Simple and logical installer menu set-up, programming and operation is enhanced by audio prompting that confirms touchscreen entries. Features like variable touchscreen security to prevent tampering, temporary and vacation
Blue with confidence because it’s exclusively for the professional trade.
Universal – choice of 7 day, 5/1/1 day programmable or non-programmable (installer selectable)
4 times and 4 temperature settings per program(2 setbacks) heat and cool, or selectable - 2 timeand 2 temperature settings (1 setback)
Patented pre-programmed schedule simplifies time and temperature programming
Large, 12-square-inch touchscreen display – largest in the industry
Blue, lighted display for easier low-light viewing
Larger, easy-to-read character size
Extra-large touch keys for easy operation
Clean, uncluttered touchscreen display provides easier navigation
Universal Dual-Powered – choice of battery-powered or hardwired with battery back-up
Selectable Energy Management Recovery
Meets ENERGY STAR® specifications
Meets California Building Code, Title 24
Fast (FA) or slow (SL) heating cycle anticipation
Intuitive menu-driven set-up, programming and operation, with audio prompt to confirm touchscreen entries
Permanent program retention during power loss
Indefinite setpoint Hold or 4-hour temporary temperature override
Temporary temperature override – can be set from 15 minutes for Temporary adjustments up to 7 days for Vacation override
Auto heat/cool changeover option – automatically switches between heating and cooling programs
Heating and cooling, heating only or cooling only configuration (installer selectable)
Setpoint temperature “limited range†capable
Enhanced (variable) touchscreen security prevents tampering
Furnace filter change reminder
Humidifier pad change reminder
Maintains room temperature to within +/- 1°
Room temperature display can be recalibrated up to +/- 4°
Dimensions: 4.6"H x 5.9"W x 1.2"D
Setpoint Temperature Range: 45° to 99° F (7° to 32° C)
Rated Differential: Heat 0.6° F; Cool 1.2° F
Operating Ambient Temperature: 32° to 105° F (0° to 41° C)
Operating Humidity Range: 90% non-condensing maximum
Electrical Specifications Rating
Battery Power: mV to 30 VAC, NEC Class II, 50/60 HZ or DC
1.5 Amps maximum load (all terminals
Single Stage gas, oil, electric
