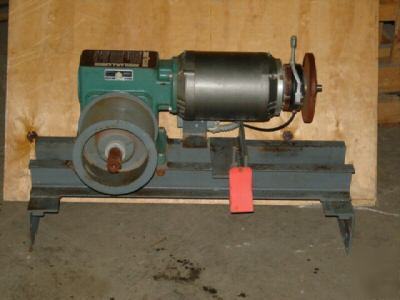

Electric hoist 3HP motor 90DEG gear reducer cable drum

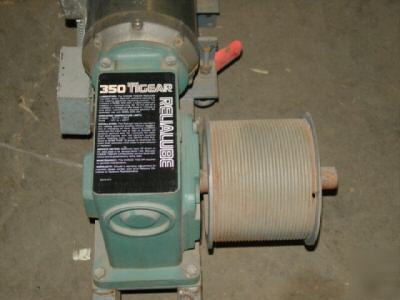

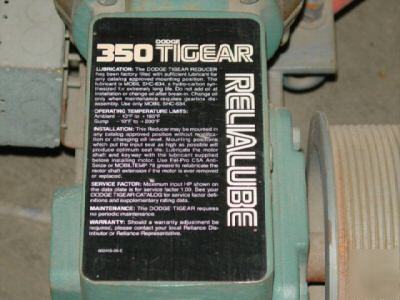

Details of the components are as follows. Transmission is a Dodge Tigear unit, Size ratio is 140\350-30, Max input hp is 2.7, max input rpm is 1750, Service factor is 1.00, Output torque is 2311.
The motor is a Baldor Industrial Motors uit P/N 36080-107, frame 1840, serial F790, 3hp, 208v 230/460, Amps 9.0-8.6/4.3, rpm 1725, 60hz 3ph class B, 400amp continous
Unit dimensions are 20w X 26h X 38L the output shaft of the gearbox is 1.5" the drum has an 8" diameter.
