#gcu-12" red ring nat broach univ diag gr shaving mach

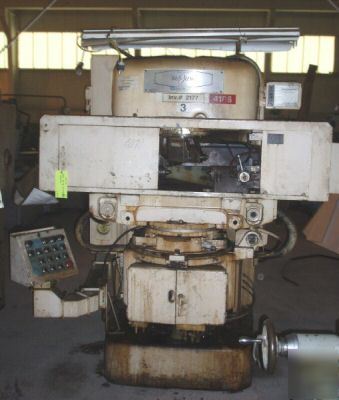

#GCU-12" RED RING NATIONAL BROACH UNIVERSAL
New 1983/84, Serial No. GCU-3381, Model GCU-12"
One (1) Set Of Precision Matched Tailstock &
Semi-Auto Load w/Pneumatic Tailstock & Pneumatic
Dial Indicator For Crossed Axis Setting
Barnesdrill Magnetic Chip Separator
Operator's Manual, Parts List, Wiring Diagram
Min./Max. Pitch Diameter Work.......... 1"-12"
Min./Max. Pitch Diameter Work.......... (24.5-304.8mm)
Diametral Pitch Of Work................ 4-20 DP
Diametral Pitch Of Work................ (6 - 1.25 Mod)
Maximum Length Between Centers......... 23.125"
Maximum Length Between Centers......... (587.375mm)
Maximum Stroke (Crown Shave)........... 5"/(127mm)
Cutter Diameters Utilized.............. 7" & 9"
Cutter Diameters Utilized.............. 177.8mm&228.6mm
Machine Overall Length................. 46"/(1168mm)
Machine Overall Width.................. 55"/(1397mm)
Machine Overall Height................. 80"/(2032mm)
Machine net weight (approx)............ 7,100 LBS.
Machine net weight (approx)............ (3227 kGs)
NOTES: Suitable For The Finish Shaving Of Spur &
Helical Gears Up To 12.75" (324mm) Diameter, & 5.5"
(138mm) Face-Width, Via The "Crossed-Axis" Method
PRICE: F.O.B. Cincinnati, OH.......... $19,500.00
All machines/equipment subject to prior sale.
