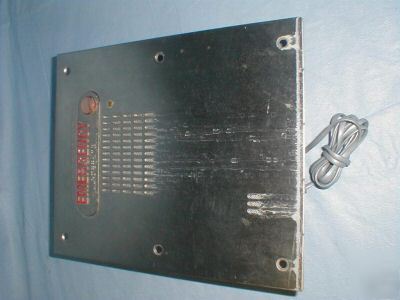

Talk-a-phone etp-400 outdoor emergency phone
The ETP-400 is an outdoor-rated, ADA-compliant hands-free Emergency Phone for use in locations such as: parking facilities, college campuses, controlled access gates, medical centers and industrial parks.
Built-in auto-dialer can dial two numbers: if first number doesn't answer or is busy, dials second number
Auto-answer allows security to monitor and initiate calls with Emergency Phone
Options available that offer the ability to automatically identify attendant of location of calling phone by recorded message and digital display
Cast metal raised letter and Braille signage for ADA compliance
Vandal resistant stainless steel faceplate and metal button
Uses regular phone lines or PBX
Phone line powered: no power supply or battery back-up needed
Auxiliary input and outputs to integrate with CCTV, Blue Light Strobe, Scream Alert and other devices
Circuit boards are conformally coated for water protection
LED indicator for hearing impaired
Approximately 10 tones per second
Parallel tip and ring connected to RJ-11 connector for quick installation
Varistor lightening suppressed and full wave polarity guarded
Non-volatile EEPROM programming can be done from any telephone
Non-volatile EEPROM programming can be done from any telephone. No battery back-up is needed
Programmable from 1-4270 minutes in 1 minute increments
1 twisted-shielded pair (gauge depends on distance)
12 gauge #4 brushed stainless steel face plate
Front Panel: 9.5(241) W x 11.75(298) H in(mm)
Flush mounts (surface mount options available)
2-way hands-free communication
Phone line powered (requires 20mA at 24V off-hook)
-4 to +149 degrees Fahrenheit (-20 to +65 degrees Celsius)
Up to 18 digits, including pauses, for each of two phone numbers
CSA Certified to UL Standard 60950
Model ETP-TAL is a Windows-based package that automatically polls each unit up to once per minute, getting a verification report back from each phone.
RF systems available for 1-200 Emergency Phones
Add "OP3" to model number to add a color pinhole camera mounted discreetly behind the faceplate. Add "OP3BW" for a b/w camera.
Model ETP-400V includes the capability to record a message identifying the location of the call. Message is recorded and duration set during programming
Use Model ETP-400C for a button that reads TO CALL instead of EMERGENCY
Model EC-8 allows connection of up to 8 phones onto one phone line, while retaining ability to call each phone individually. Can also create a closed system without need for any phone lines
