#4CSM kearney & trecker plain horizontal mill #15559

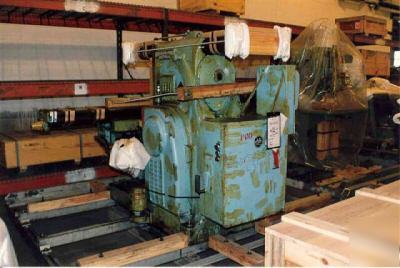

#4CSM KEARNEY & TRECKER PLAIN HORIZONTAL MILL
New 1953, Serial No 31-7127, Model 4CSM, Ltr CSM,
Table Dimensions (Overall), W x L....... 15.5" x 74"
Table Working Surface, W x L............ 15.5" x 74"
Table Longitudinal Travel (X-Axis)...... 42"
Saddle In-Out Cross Travel (Z-Axis)..... 14"
Knee Vertical Travel (Y-Axis)........... 18"
Spindle Taper........................... #50 NSTD
(16) Spindle Speeds, Range.............. 50 to 1250 RPM
(32) Longitudinal and Cross Feeds....... 3/8 to 90 IPM
(32) Vertical Feeds, Range.............. 3/16 to 45 IPM
Power Rapid Traverse, Long & Cross...... 150 IPM
Power Rapid Traverse, Vertical.......... 75 IPM
Spindle Motor, Horsepower............... 30 HP
Feed Motor, Horsepower.................. 3 HP
Weight, Approximately................... 9700 LBS
CONDITION: Appears to be in Good Condition
As Taken Directly from Government Stand-By Storage.
PRICE: F.O.B. OHIO (Toledo)............ $1,950.00
All machines/equipment subject to prior sale.
