Okuma LU15BBW-2S600 five axis cnc lathe w/sub spindle


(***)-783-2218 (***)-783-5800 fax (***)-401-3572 cell

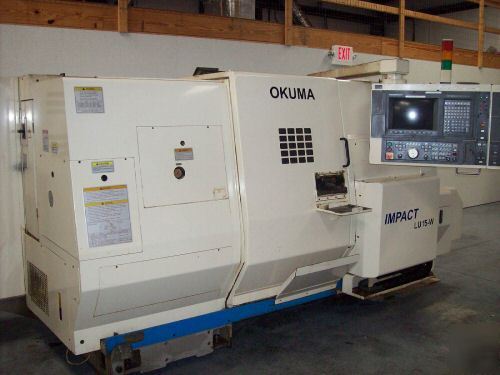

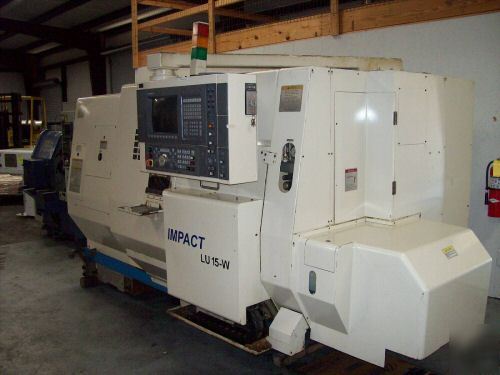

OKUMA LU-15 Big Bore W 2S/600 4-Axis Turning Center
Swing over cross slide: 14.96”
Distance between centers: 23.62”
X Axis (upper/lower): 7.09” x 3.l5:/4.l3” + l.38”
Z-Axis (upper/lower) 25.20” x 24.41”
Speed range: 75-3600 rpm - No. of range: 2 infinitely (Main)
Speed range: 75 - 5000 rpm (Sub)
Turrets: (Slotted-wedge-clamp)
Vertical type: Upper: V12NC Lower: V8 NC
No. of tools: Upper: l2 Lower: 8
Tool size: OD l.00” sq. - Max. I.D. l.50”
Index speed: 0.2 seconds/station
Coupling diameter: Upper/Lower: 9.84”/8.66”
Clamping force: Upper/Lower: 8,844 lbs./6380 lbs.
Rapid traverse : X - 945 IPM - Z - 945 IPM
Cutting feed: X & Z 0.00l” to 39.370”

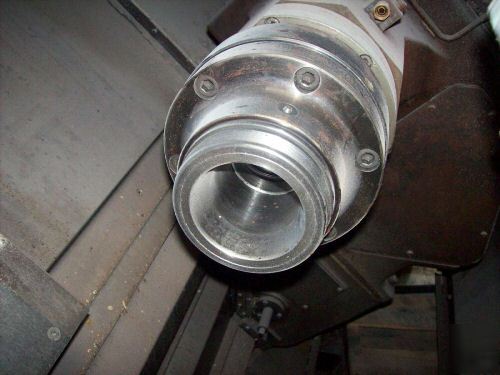

S30 Collet Chuck on Main Spindle
B60 Dead Length Collet Chuck on Sub Spindle
2.7" Bar Capacity on Main Spindle
Barfeeder Available - Please inquire about our barfeed inventory.
This machine comes with a 30 day return privilege and full startup guarantee.
