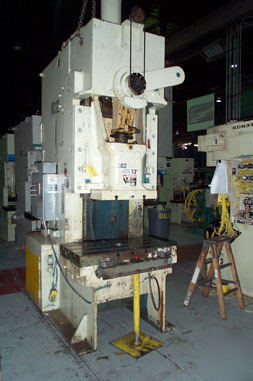

Aida pc-10(2) gap press
AIDA MODEL PC-10(2) GEARED DESIGN, OPEN BACK, GAP FRAME PRESS*
Capacity: 121 Ton
Stroke: 6.7"
Shut Height Bed to Slide (SDAU): 17.2"
Slide Adjustment: 2.9"
Bed Area: 41.8" L-R x 22" F-B
Slide Face Area: 23.6" L-R x 17.8" F-B (T-Slotted)
Throat Depth: 11.5"
Opening Through Back: 22"
Distance Bed to Floor: 32"
Speed: 50 SPM
Air Clutch and Brake with Selector Controls
Arranged for Knockout L-R
EQUIPPED WITH:
Rockford SSC-2000 Solid State Press Control
w/Operator Interface
Air Counterbalance Cylinder to Slide
Hydraulic Overload Protection
Bolster Plate (4" Thick)
Stroke Position Indicator
Trabon Centralized Lubrication System
10 HP AC Main Drive Motor
Dual Palm Button Operation
Updated Electrical Controls (Rockford)
Approximate Overall Dimensions: 55" L-R x 78" F-B x 141" H
Approximate Weight: 20,000 Lbs.
Serial Number: 00110-1420 (New 1974)
P2 F.O.B. Elk Grove, IL - $ 19,500.00
* PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION
Email us at ****@PerfectionMachinery.com
Call our Sales Staff at 1-(***)-254-8808
Prices do not include any federal, state or local taxes, which are in addition to the purchase price and must be paid by the Purchaser. Any and all foreign duties and taxes are the responsibility of Purchaser. Unless Purchaser furnishes PMS with a tax exemption certificate, any sales, use, excise, or other similar tax, where applicable, shall also be the responsibility of Purchaser and may, at the election of PMS, be added to the quoted purchase price and invoiced by PMS to Purchaser. The failure of PMS to invoice such taxes does not excuse the Purchaser from responsibility for paying necessary taxes.
Some machinery and equipment is located at Fortune 100 Manufacturing Facilities. Most of the machinery and equipment located at these Facilities is disconnected and cannot be seen under power. Unless specifically listed in writing by PMS, all machinery and equipment uses 3 Phase power.
1-(***)-427-3333 (outside US & Canada)
Email: ****@PerfectionMachinery.com
