> Hp 3330B digital synthesized generator 0.1HZ to 13MHZ.

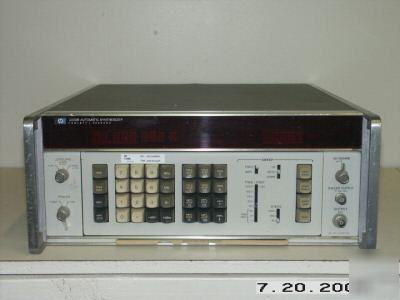

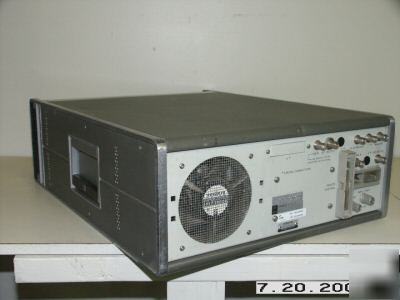

Hp 3330B digital synthesized generator 0.1HZ to 13MHZ.
HP 3330B With Option 001 - (75 ohm 1 volt ouput) @ 499.00
With Option 004 - (Isolated ASCII) @499.00
& With Options 002/004/005 - (Crystal Oven, Isolated ASCII, and 5V, 50 ohm output.) @ 659.00
HP 3330B Programmable,Synthesized Generator. With Digital Sweeping of Frequency and Amplitude. 0.1Hz to 13MHz. 1.05V RMS Into 50 Ohms Max. And HPIB.
This Frequency Synthesizer Has a Stability of +/-1 x 10(8) per Day, -50 dB Signal to Phase Noise,
Constant Resolution of 0.1 Hz up to 13 MHz.
Four Digit Amplitude Control to a Resolution of 0.01 dB Over a 100 dB Range is Standard.
Manual Control for Amplitude and Output is Leveled to +/- 0,5 dB.
Solid-state Displays Show Frequency (9 Digits) and Amplitude (4 Digits)
Spectral Purity. Spurious is >70 dB Below the Carrier and Harmonics are >60 dB to 40 dB Below the Carrier, Depending Upon the Frequency Setting.
All Items sell with 5 days right of return, and 15 days GUARANTEE on all parts and labor.
HP 3330B With Options 002/004/005 - (Crystal Oven, Isolated ASCII, and 5V, 50 ohm output.)
HP 3330B Programmable,Synthesized Generator. With Digital Sweeping of Frequency and Amplitude. 0.1Hz to 13MHz. 1.05V RMS Into 50 Ohms Max. And HPIB.
This Frequency Synthesizer Has a Stability of +/-1 x 10(8) per Day, -50 dB Signal to Phase Noise,
Constant Resolution of 0.1 Hz up to 13 MHz.
Four Digit Amplitude Control to a Resolution of 0.01 dB Over a 100 dB Range is Standard.
Manual Control for Amplitude and Output is Leveled to +/- 0,5 dB.
Solid-state Displays Show Frequency (9 Digits) and Amplitude (4 Digits)
Spectral Purity. Spurious is >70 dB Below the Carrier and Harmonics are >60 dB to 40 dB Below the Carrier, Depending Upon the Frequency Setting.
All Items sell with 5 days right of return, and 15 days GUARANTEE on all parts and labor.
