Viper mighty comet vmc-1000 cnc vertical mill 4761H exc
Exceptional Find - Extremely Low 4761 Machine Hours!

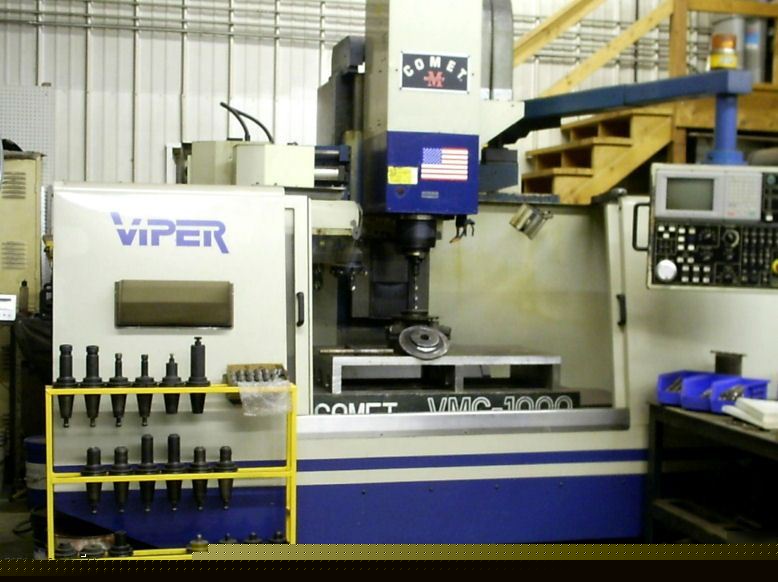

This is a 1998 model Viper Mighty Comet 1000-G CNC Vertical Mill complete with Mitsubishi controller. Specifications on this vertical milling center are:
__________________________________________________
* Loading capacity: 2,200 pounds
* Longitudinal travel (X axis): 41"
* Cross travel (Y axis): 21"
* Vertical travel of head (Z axis): 20" with #50 taper drum ATC
* Speed range - 2 step gear head (#50 taper): 50-6000 rpm
* Distance from table surface to spindle nose - drum type: 5.4-25.4" with #50 taper
* Distance from spindle center to column face: 18.5" with #50 taper
* Spindle motor (intermittent duty rating): AC 22.5 hp
* Spindle motor (30 min. rating): AC 15 hp
* Cartidge type with built in circulation cooling pipe: 2.5 gal
* Spindle drive (Mitsubishi digital): MDS-A-SP-110
* Rapid traverse rate X and Y: 708 ipm
* Rapid traverse rate Z: 630 ipm
* Cutting feed rate (max): 400 ipm
* X, Y, and Z axis AC high torque: Fanuc 12 or Mitsubishi HA-100
* Maximum thrust rating: 9,671 lbs
Additional specs are available upon request.
__________________________________________________
The listing price of this ad ($38,500) is for the mill and controller only. However, the owner also has a lot of tooling for the mill, including a 42 x 24" aluminum riser that is 6 1/2" high with mounting holes to allow for shorter tooling, for which the owner paid $5400.00. There are also 25 tooling holders for the machine. These include 16 straight-shank holders, 6 collet holders, and 3 cutting-wheel holders. Even the most basic tooling packages for this mill cost around $25,000.00. The owner wants an additional $3,500 for the riser, additional tooling, and manuals. If you would like to purchase the mill and the tooling, we can either make another ad just for the tooling or relist this ad to include the mill, manuals, and tooling.
The current owner, Joel Schmitt of Schmitty's Welding, is the second owner of the machine. The first owner used this mill for only 2 8-hour shifts per week to mill aluminum only, and it has been well maintained for its entire life. All manuals for the mill as well as the programming manuals for the Mitsubishi controller are included. The fact that this high-volume mill has only 4761 machine hours (9906 total run hours) with most of that restricted to aluminum, combined with the price of this mill, makes it truly an exceptional value!
This mill is available for inspection during business hours at Schmitty's Welding at 507 N. Roosevelt Street in Aberdeen, South Dakota. You can also contact the owner, Joel Schmitt, at the shop at (***)-725-0401 or you can almost always reach him on his cell phone at (***)-216-6168. Joel does not have an e-mail address.
___________________________________________________________
South Dakota residents will be charged 4% state sales tax plus applicable city sales tax.
___________________________________________________________
