New all lathe digital readout system - dro
Linear Measuring Systems Company offers the following:
**NEW** Newall C80 "Lathe" digital readout system
See the many sizes below. You choose the size you need.
These systems list price for $1995.00 to $3895.00
The complete system includes the following:
A operations manual, warranty information, 2 axis display, 2 linear scales and mounting hardware for the scales and display.

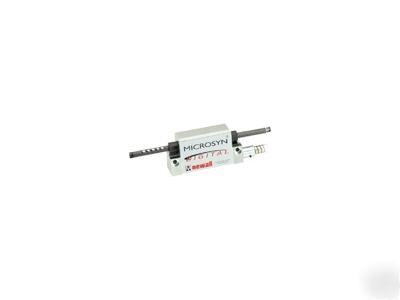

Microsyn - Cross slide axis for scales that are 10" or less travel
Spherosyn - Cross slide axis for scales that are 12" or longer travel
The X and Z scale resolution is 5um/.0002" or 10um / 0.0005"
The C80 is everything you could ask for in a DRO and includes a full complement of productivity enhancing features. The innovative design allows the operator to easily configure the unit for either mill or lathe specific features. In addition, the C80 includes a feed rate display that allows for longer tool life and increased cutting tool performance.
• Absolute/Incremental Operation
• Segmented Error Compensation
• Switchable Resolutions by Axis
• Axis Vectoring/Summing (3 axis)

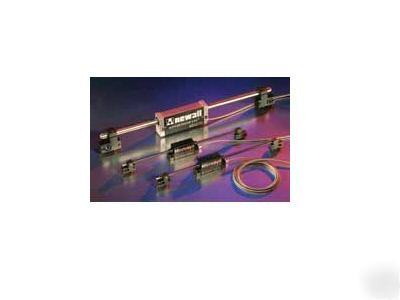

All Newall linear encoders carry an IP67 environmental rating and continually provide accurate, reliable readings even when fully submersed in water, oil or coolant. No other absolute, incremental or digital linear encoder matches the durability and reliability of Newall's Spherosyn® and Microsyn® linear encoder and scales.
Using the principle of induction, an electromagnetic field is generated within the reader head (linear encoder), interacting with ball bearings inside the scale. During axial movement along the scale, variations in the induced field are detected, processed and converted to an industry standard differential quadrature by a Digital Signal Processor (DSP).
Please choose from the following normally stocked systems:
Package Number: C8006M10040SH11 6x40 Travel
Package Number: C8008M10040SH11 8x40 Travel
Package Number: C8010M10040SH11 10x40 Travel
Other sizes available, see below.
Package Number: C8006M10050SH11 6x50 Travel
Package Number: C8008M10050SH11 8x50 Travel
Package Number: C8010M10050SH11 10x50 Travel
Package Number: C8006M10060SH11 6x60 Travel
Package Number: C8008M10060SH11 8x60 Travel
Package Number: C8010M10060SH11 10x60 Travel
Package Number: C8008M10072SH11 8x72 Travel
Package Number: C80010M10072SH11 10x72 Travel
Package Number: C8012M10072SH11 12x72 Travel
Package Number: C8008M10080SH11 8x80 Travel
Package Number: C80010M10080SH11 10x80 Travel
Package Number: C8012S10080SH11 12x80 Travel
Package Number: C8010M10100SH11 10x100 Travel
Package Number: C8012S10100SH11 12x100 Travel
Package Number: C8014S10100SH11 14x100 Travel
Package Number: C8012S10120SH11 12x120 Travel
Package Number: C8014S10120SH11 14x120 Travel
Package Number: C8016S10120SH11 16x120 Travel
Package Number: C8020S10120SH11 20x120 Travel

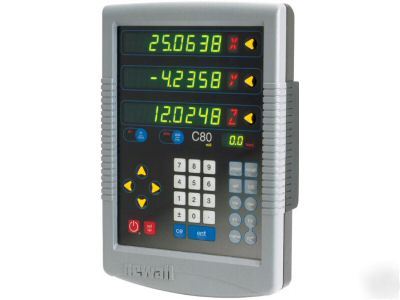

I know the picture shows a three axis system but that is what Newall supplies to the public. If you don't like it or understand it, give Newall a call and tell them to change it, don't call or e-mail me. I already know it shows a three axis display.
The brackets supplied are UNIVERSAL brackets.
I don't stock these systems in my office. My supplier stocks these systems in their office in South El Monte Ca.
4) Company Checks (require 5 - 7 days to clear).
All California residents will pay 7.75% tax on your purchase unless you have a resale number.
No trades for other product or services
System comes with a 3 year system warranty and 5 year scale warranty.
Property is sold "New". Seller "Warranties property and condition is as described".
For further information about Linear Measuring Systems, you can see us at
