Tek CG5010 / CG5011 svc/op mnls 2 vol w/txtsrch + xtras

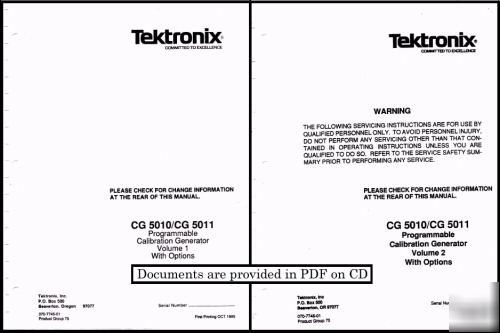

Tektronix CG5010 Service and Operating Manuals (Vol 1 and Vol 2) in both Very High and in Standard Resolution PDFs on CD
(No need to "email for samples," so no need to worry about getting sold to a SPAM list!)
(Please read FAQ or "About Me" Page)
SCAN PARAMETERS (Very High Res PDFs):
Text with photos: 600dpi grayscale (contrast adjusted)
Text with Drawings: 600dpi black and white
Schematics: 600dpi black and white
Schematics and PCB Photos w/Color (if any): 600dpi 256 color
Scan parameters of the standard res PDF: The standard res PDF is done in resolutions that vary depending on individual page content, but are never higher than needed to produce a useable quality, quickly navigable file that will do the job without consuming more time and resources than are needed.
"AND IF THAT'S NOT ENOUGH FOR YOU":
As "bonus" material, includes the Tektronix Semiconductor Parts Catalog, plus an interesting and informative Articles PDF as well as a useful text-searchable scan of the 1990 Tektronix Catalog, featuring almost 3,000 Tektronix Products, all at no additional charge!
More bonus items on the CD! Here's a description of additional bonus items included:
The document tm5x1977_sm.pdf is a 1977 Tektronix sales publication with considerable useful information on elements of the TM500 series.
The document TM500_Supplies_sm.pdf contains information from Tektronix regarding suggested power supply circuits for use in the TM500 series blank module kit.
The document tm5xrib_sm.pdf is the entire Tektronix "Rear Interface Data Book" that details pinouts on the rear of TM500 series modules and interconnections between them in the power modules.
Last but not least, you get text-searchable scans of the service/operating manuals for the TM501, TM503, TM504, TM506, TM515 and TM5006 Power Modules.
Please be aware: there are NO pages with company identifiers (i.e. "Scans by Ripoff Media") or other such undescribed faults in this product. There are NO locked-in advertising letters or other such undescribed defects in this product.
