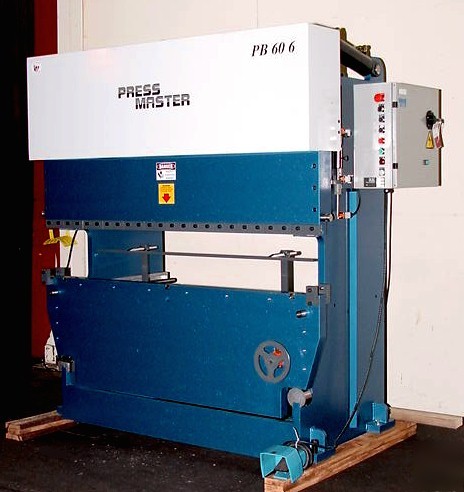

NEW 60 TON x 72" PRESSMASTER HYDRAULIC PRESS BRAKE
NEW 60 TON x 72" PRESSMASTER HYDRAULIC PRESS BRAKE
NEW PRESSMASTER 6' X 60 TON HYD. PRESS BRAKE
MAXIMUM TONNAGE .................................... 60
APPROACH SPEED ..................................... 70 IPM
PRESSING SPEED ..................................... 16 IPM
RETURN SPEED ....................................... 86 IPM
OVERALL BENDING LENGTH ............................. 72"
DISTANCE BETWEEN FRAMES ............................ 60.5"
THROAT DEPTH ....................................... 8"
BED HEIGHT ......................................... 33"
WIDTH OF BED TOP ................................... 2.375"
MAXIMUM ADJUSTABLE STROKE .......................... 4"
OPEN HEIGHT ........................................ 11"
CLOSED HEIGHT ...................................... 7"
HYDRAULIC OIL RESERVE .............................. 38 GAL
MOTOR HP @ 1750 RPM................................. 5HP
VOLTAGES AVAILABLE: 230/460/575 3 PH 60 HZ
DIMENSIONS: 84" L X 38" D X 84" H
- INCLUDES MOTORIZED FRONT OPERATED BACK GAUGE, WITH
READOUT AND FINE HANDWHEEL ADJUSTMENT.
- JOG MODE USED FOR SIMPLIFYING SET-UP.
- QUALITY BALDOR MOTOR, LOW SPEED.
- FULLY ENCLOSED CONTROL PANEL COMPLETE WITH LOW VOLTAGE
- ALL MAJOR PIVOT POINTS AND SLIDES ARE LINED WITH
ZINCALLOY TO PROVIDE HIGH LOAD CAPACITY (60,000 PSI) AND
LOW FRICTION. ZINCALLOY REQUIRES NO LUBRICATION AND WILL
PROVIDE YEARS OF MAINTENANCE-FREE SERVICE. ZINCALLOY IS
WIDELY USING IN MINING APPLICATIONS, LIKE BUSHINGS USED IN
WHEELS OF RAIL CARS HAULING COAL UNDER GROUND IN A DIRTY
ENVIRONMENT - THE PERFECT BEARING SURFACE FOR HARSH
- THE DUAL RAM SPEEDS ARE CONTROLLED THROUGH LIMIT SWITCHES
ALLOWING FOR RAPID RAM MOVEMENT TO POINT OF CONTACT. THE
REMAINDER OF THE RAM TRAVEL IS AT A SLOWER BENDING SPEED.
- THE RAM IS MACHINED TO ACCEPT NORTH AMERICAN STYLE
- THE BED IS ADJUSTED INSTEAD OF THE RAM TO ALLOW PERFECT
RAM/RAM-GUIDE ALIGNMENT. TILT ADJUSTMENT IS CONVENIENTLY
LOCATED ON THE FRONT OF THE MACHINE.
- THE BED IS DRILLED AND TAPPED TO EASILY ALIGN DIE RAIL
- THE FULL LENGTH OF THE BED IS SLOTTED .625" WIDE X .750"
- ALL HYDRAULICS, ELECTRICAL & MECHANICAL PARTS ARE THE
STANDARDS IN THE INDUSTRY, AND AVAILABLE THROUGHOUT NORTH
HOW DO PRESS BRAKE TRANSMIT POWER TO THE RAM AND ASSURE
PARALLELISM, EVEN WHEN LOADS ARE NOT EVENLY DISTRIBUTED?
SOME MANUFACTURERS USE THE TORQUE TUBE DESIGN TO CONNECT
THE TWO END LEVERS TOGETHER. OTHERS USE A STABILIZER BAR
DESIGN SUPPORTED ON EACH SIDE OF THE MAIN FRAME AND
ATTACHED TO THE RAM BY USE OF A LINKAGE SYSTEM. WE AT
PRESSMASTER USE BOTH SYSTEMS TO BUILD A PRECISION PRESS
BRAKE THAT ASSURES HIGH RIGIDITY AND PARALLEL MOVEMENT.
OUR OBJECTIVE AT PRESSMASTER IS TO PROVIDE AN ACCURATE &
RELIABLE MACHINE OFFERING A HIGH RETURN ON YOUR INVESTMENT.
OUR MACHINES HAVE ALL THE FEATURES REQUIRED FOR LONG LIFE
AND EASE OF OPERATION. THEY ARE SIMPLE ENOUGH FOR EVEN
INEXPERIENCED OPERATORS TO MASTER QUICKLY.
Machine Location: HARRISON, NJ
