Tool/cutter grinder, chevalier fcg-714L heavy duty

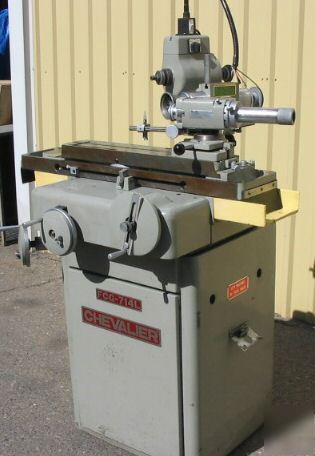

Chevalier Model# FCG-714L Heavy Duty Type Universal Tool & Cutter Grinder In Excellent Used Condition. The machine currently has the C2AH 5C Collet Air Bearing Fixture mounted on it, a 1200.00 accessory. In the photos are Standard Equipment items that came with this machine. Also included are the C2DH-1 Motor Driven Work Head B&S Taper No. 11, the C2RG Radial Grinding Fixture B&S Taper No. 11, and the C2SH Sensitive Work Head (It may be a C2SF N.T. #50). We have more photos showing what the pallets contain as far as attachments. The last three attachments should be complete, although somewhat disassembled. The attachments have always been kept with the machine but there is no guaranty that every part is there. Please look closely at the photos and we will be happy to e-mail you more close up photos. Complete with Owners Manuals. This machine sells for 7990.00 new and there are roughly 5700.00 in attachments. If you have any specific questions about usage of this machine, please contact the mfg. at (***)-903-1929. Below are the Mfg. Features and Specifications:
Local Pick Up ONLY on this item. If you want to send a flatbed or similar truck, we can load it only. The driver will have to secure this machine to the truck.
* Double V ways on saddle crossways
* Precision spindle bearings for high speed grinding
* Grinding head swivel angle of 360 degrees
* Cast iron base and large storage room
* Bronze cross and down feed nut with easy backlash adjustment device
* Automatic spool roller lubricating system
* Two speed table transmission for fast & slow table travel
* Distance between tail stocks: 22”
* Distance between centers in work head & tailstock: 15”
* Distance between collet in work head & tailstock: 15 ½”
* Distance between chuck face & tailstock: 14”
* Table working surface: 5 ¼” x 27 ¼”
* Minimum distance from centerline of wheel shaft to table surface: 3 ¾”
* Maximum distance from centerline of wheel shaft to table surface: 10 ¾”
* Centerline height of fixtures to table surface: 4.13”
* Spindle speed: 1150-7760 rpm
