Gigatronics giga-tronics 8541C universal power meter

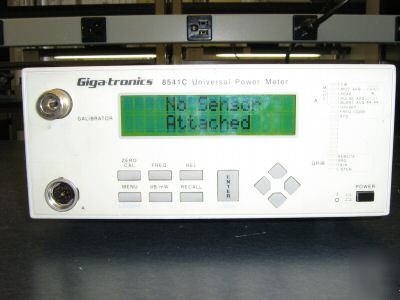

Giga-tronics (Gigatronics) 8541C Universal RP Power Meter
This is a used item in good working condition. The body has some light scraches. This item includes power meter and chord only.
MANUFACTURER'S Specifications:
The model 8541C is a digital- controlled, self-calibrating power meter. It can measure RF and microwave signal power over a wide range of frequencies and levels in a variety of measurement modes. It can be operated locally from the front panel or remotely over the General Purpose Interface Bus (GPIB). The 8541C and the Series 80400 line of power sensors (NOT INCLUDED) offer enhanced performance in the measurement of complex modulation signals in the communication industry.
CW, modulated and peak power sensors
2000 readings/second in the Fast Buffered Mode (GPIB only)
90 dB dynamic range CW sensors
HP 438A, 437B, and 436 native emulation (GPIB only)
EEPROM based CAL FACTOR correction sensors
Modulated Average Power (MAP) mode
Burst Average Power (BAP) mode
Accuracy or Linearity: GPIB
Frequency Range: 10 MHz - 40 GHz
Min/Max Display Resolution: 0.001 dB - 1 dB
Min/Max Power: 0.0001 uW - 50.119 W
Warranty: Against DOA. 7 days ROR. Our 7 days guarantee against DEAD ON ARRIVAL does not guarantee for compatibility.
Giga-tronics (Gigatronics) 8541C Universal RP Power Meter
This is a used item in good working condition. The body has some light scraches. This item includes power meter only, no chord or sensor.
MANUFACTURER'S Specifications:
The model 8541C is a digital- controlled, self-calibrating power meter. It can measure RF and microwave signal power over a wide range of frequencies and levels in a variety of measurement modes. It can be operated locally from the front panel or remotely over the General Purpose Interface Bus (GPIB). The 8541C and the Series 80400 line of power sensors (NOT INCLUDED) offer enhanced performance in the measurement of complex modulation signals in the communication industry.
CW, modulated and peak power sensors
2000 readings/second in the Fast Buffered Mode (GPIB only)
90 dB dynamic range CW sensors
HP 438A, 437B, and 436 native emulation (GPIB only)
EEPROM based CAL FACTOR correction sensors
Modulated Average Power (MAP) mode
Burst Average Power (BAP) mode
Accuracy or Linearity: GPIB
Frequency Range: 10 MHz - 40 GHz
Min/Max Display Resolution: 0.001 dB - 1 dB
Min/Max Power: 0.0001 uW - 50.119 W
Warranty: Against DOA. 7 days ROR. Our 7 days guarantee against DEAD ON ARRIVAL does not guarantee for compatibility.
