Giddings & lewis gl cnc servo control parts-3000?#s
Giddings & Lewis GL CNC Servo Control Parts-Multiple 1000 pounds-Take it all or just the parts you need.
The first cabinet shown here is listed as 12 KVA total rating. We don't know which of any of the numbers above is important but 9875028 seems to be a common theme. The contents of this cabinet are primarily fuses, contactors and a transformer.
The transformer is a Badger 3 kva single phase 240/480 to 120.
The mid section contactors are NEMA size 1.
There is a remote control pendant shown here with the connector pins shown below. (The control console is shown toward the end of all the images.)

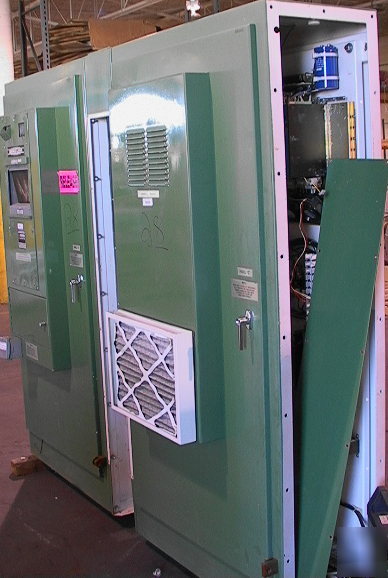

The image above shows two panel sections although they are currently physically connected.
Note the heat exchanger in the door shown above. This unit allows for cooling of the electronics inside without circulating outside (dirty) air into the electronics. It is a McLean Midwest model HE-3316-005
Between the C and B sections (coming out of the C section) are the connectors shown above. (No idea what happened to the cables that connected to them.)
The paper tape reader looks really nice-although it is extremely dated technology.
These images shown all the control electronics and I/O boards inside the B section.
The numbers 501-03908-00 and 502-03112-00 appear on the board above. The board behind it (not shown) has the number 502-03113-00.
There are also Renishaw MI 4 and MI 5 Machine Interface units inside.
There are 3 levels of opto-22 like I/O isolator boards. (Something on the order of 140 I/O modules.)
The number 502-03064-10 appears associated with each row of these digital I/O modules.
The 8 cards shown below are called servo cards and have the number 501-03882-00 (they might have a 502 number we did not write down).
Note all the computer boards shown below.
The image of the main computer boards is rotated counter-clockwise from what it should be. There seem to be multiple processor and memory boards. The following list of part numbers we jotted down is not exact with regards to count.
* 501-03852-00/502-03055-00 2X
* 501-03854-01/502-03063-01 2X
* 501-03883-01/502-03o93-60/-42/-41 4X
* 501-03865-01/502-03061-01/-51 3X
There is a second Badger Transformer good for 1.5 KVA. It looks like just an Isolation Transformer.
The C section once contained 5 Gould CLX modules and 3 Allen-Bradley Servo Drive Controllers that are no longer available or part of this lisiting).
The control console is shown here. It looks relatively rough. The protective glass in front of the CRT has been broken out. However, there may be some useful spare parts.
Additional similar items maybe listed separately or available on request.
Might be just what you need for your G&L CNC controller spare parts application.
Condition looks like spare parts and sold only as that.
