5"X42" seneca falls auto dbl-end drilling & centering

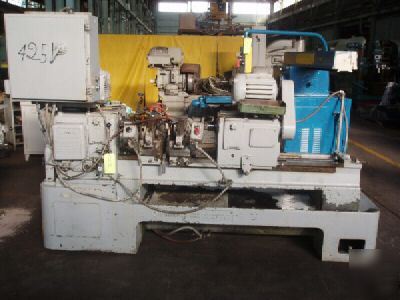

5" x 42" SENECA FALLS AUTOMATIC DOUBLE-END
New 1957, Serial No 25CS-685, Model CS,
Centering Heads: (2) 5 HP (each)
(2) Self Centering Air-Operated Vises
Trabon Automatic Lubrication System
Work Diameter Capacity, Minimum........ .75"
Work Diameter Capacity, Maximum........ 5"
Distance Between Centers, Maximum...... 42"
Spindle Quill Stroke, Maximum.......... 2.5"
Spindle-Center to Bed Ways, Distance... 9.25"
Spindle Hole For Drill Adapter, Dia.... 2.5"
Spindle Speeds, Range.................. 235 to 2264 RPM
Spindle Feeds, Range................... .0015 to .015 IPR
(2) Spindle Motors, HP/RPM............. 5 HP/1733 RPM
Overall Dimensions, L x W.............. 9'6" x 2'6"
Overall Height......................... 6'
Weight, Approximately.................. 4600 LBS
PRICE: F.O.B. OUR WAREHOUSE........... $4,950.00
All machines/equipment subject to prior sale.
