Square d 45T3H 3 ph. transformer 45KVA +200A disconnect

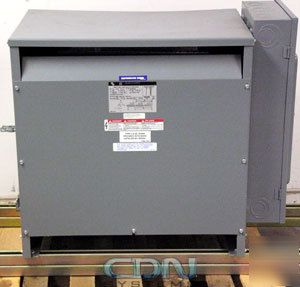

Square D 45T3H 3 Ph. Transformer 45kVA +200A Disconnect
Specifications for SquareD Cat. No. 45T3HFISNL 3 phase Transformer
* High Voltage: 480VAC Delta (nominal, 432V to 504V depending on wiring), 54A, 60Hz
* Low Voltage: 208VAC Y or 120VAC, 125A
* Unit weight: 550lbs with switch box
* Approx. Dimensions including mounting rails and disconnect: 44"W x 20"d X 34h
* Designed for high harmonic loads
* Three phase dry type transformers, 480 Delta—208Y/120
* NLP Series has maximum sound level 3dB below NEMA Standard
* 115°C temperature rise rating
* Additional coil capacity to compensate for higher non-linear load loss
* Heavy gauge ventilated indoor enclosures
Please note: this transformer (without the switch box) has a list price of $4759, according to this spec. sheet from the Square D website.
* Is there a loading dock or fork lift available at your location?
* Will the delivery driver be required to bring the item inside?
* What is your full address and phone number?
* Custom built crating is available. Additional Fees apply.
