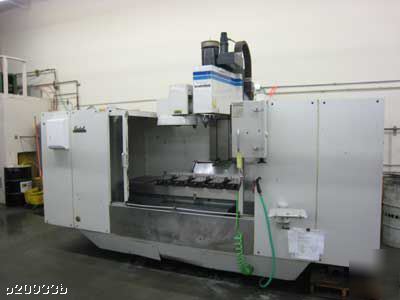

1992 fadal vmc 6030 machining center -cnc mill machine
* Liquid cooled to near ambient temperature by a low maintenance system.
* Mist lubricated for maximum bearing life.
* Cartridge design for low cost replacement
* High RPM with power to create a shower of chips.
* High torque at the bottom end for excellent steel removal.
* High NC processing speed which enables a through out of up to 70 blocks per second
* Real-Time DNC is a simple basic program in your personal computer or a CAD/CAM system can drive the VMC in real-time mode.
* Our unique V-Belt Drive offers two speed ranges that are selected automatically.
* Automatic Belt Idlers eliminate belt slip.
* V-Belt Design offers advantages over gears.
* ASCII characters are engraved at any angle.
* Parametized value for federates, dimension words, etc. can be passed to a subroutine.
* Continuous reciprocation of any axis between programmed limits. Several types of surfaces and pockets are easily generated.
* Y-Axis to A-Axis Mapping programs written for the XY plane can be executed on the X and A axes. Cutter radius compensation and circular interpolation are allowed.
* Compatibility with the major CNC products. Chances are, we can run your present CNC programs.
* Telephone Modem (added option) that enables our programmers and servicemen to communicate directly with your machine from our office.
* 1†STD HSS end mill .65 depth of cut-24cu.â€/min.
* 3†inserted shell mill .250†DOC-48cu.â€/min.
* 1†STD HSS end mill .500†DOC-3.2cu.â€/min.
* 3†inserted shell mill .250†DOC-6.0cu.â€/min.
* 1†STD HSS end mill .250†DOC-3.2cu.â€/min
* 2-1/2†inserted shell mill .250†DOC-8.0
* Up to 9 computers working in parallel allows up to nine simultaneous processes for optimum performance.
* 1000 blks./sec. (32kb/sec.) processing speed allows smaller program increments to improve surface integrity without sacrificing speed.
* The program can be inserted into the control through the keyboard or the RS-232-C Port. Features such as Insert, Delete, Change, List, Copy and Sum simplify program editing. A copy of all programs can be made through the port.
* Battery Backed Memory will retain programs loaded into memory indefinitely. 30 Programs can be stored with standard memory, 500 can be stored with optional memory.
* Cutter Radius Compensation can be one of the most cost saving features of this machine. It is very easy to use. Either the part outline or the cutter path will be accepted. Just enter G41 or G42 to indicate that the cutter is on the left or right of the part and enter the cutter diameter for part outline programming or the cutter diameter difference for cutter path programming. This feature makes it easier to hold close tolerances and adds new life to reground end mills.
* Subroutines allow repeated operations. For example, the positioning moves for a hole pattern can be put in a subroutine and repeated for center-drill, drill and tap or ream cycles. Also, as many as 99 holes on a partial circle can be created by a one block reference to the bolt circle subroutine.
* Learn Mode allows moves made while the machine is under manual control of the operator can be inserted in to the program.
* Engraving Mode allows text containing alphabetical, numerical and special characters can be engraved in a variety of sizes and inclinations.
* ASCII characters are engraved at any angle.
* Parameterized subroutine values for feed-rates, dimension words, etc. can be passed to a subroutine.
* Y-Axis to X-Axis Mapping, programs written for the XY Plane can be executed on the X and A Axes. Cutter Radius Compensation and Circular Interpolation are allowed.
MAXIMUM TOOL DIAMETER WITHOUT TOOLS
∙Items over 12000 lbs. will be sent via open-bed freight. These items cannot be palletized, put on a skid or crated through our company. Machinery movers will be contracted to remove the item from our showroom and load it on to an open-bed freight truck. These movers will be using specialty equipment which increases the cost of their service. You will be charged a minimum rigging fee of $400. We may charge more in the case of items located outside our showroom.
* DIMENSIONS: 158x103x122H in. appr.
* WEIGHT: 17000 lbs. appr.
