4-ch relay card (basic stamp, pic, atmel, picaxe)

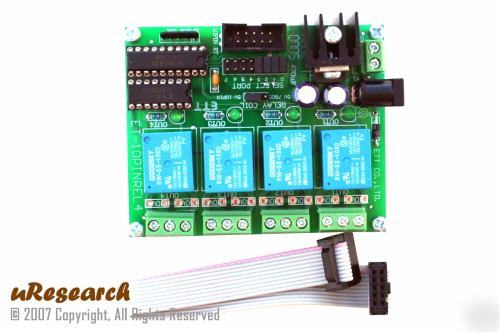

The relays required a very small current to drive due to the on-board Darlington driver circuit. Also, the driver pins are isolated from the relay driver circuitry. The diver pins can be select from 4-bit HIGH or 4-bit LOW of the 10PIN MRconnect©. Each of the relay has an LED to indicate the state of the relay. The output terminals included COM (common), NO (normally open) and NC (normally close) contacts. The card can be power by using the power from the 10PIN MRconnect© or external 2.5mm, center negative, 9-16VDC wall adapter or external power supply via the terminal block connector. The board is small in size 3.30 x 2.70 inches.
· 4-CH output relay with COM, NC and NC terminals
· 5VDC relay coil, control up to 12A 120VAC or 10A 24VDC
· Selectable driver pins from 4-bit HIGH or 4-bit LOW of the 10PIN MRconnect©
· Selectable power supply from 10PIN MRconnect© or external
· On-board 5VDC regulator for the external supply
For more information please see: MR-TEST-10P-4RELAY User Manual
Basic Stamp example code: BASIC_STAMP_MR-TEST-10P-4RELAY.bsp
“This is sold fully assembled and tested”
· Product will be carefully packed with antistatic material.
For more exciting products please visit WWW.MICRORESEARCH.US
