Sheldon 15" lathe w/chucks,t post grinder,collets ect.

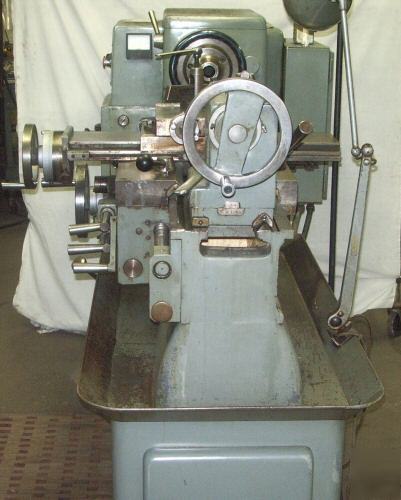

I saved our best Lathe for last. This Sheldon R15 inch is a beast. I comes with all 21 (5C) collets and collet chuck, Sheldon Steady Rest, Dumore Tool Post Grinder, 15" camlock Face Plate with dogs, tool holder, four and six Jaw chucks, Jacobs No. 18N chuck for tailstock, tools and manual. This was our go to unit when ultra precision was required. We are looking for a good home for our favorite lathe. This is a tool room, not a production unit. It is still powered, level, and available for inspection upon request.
5 H.P. 220/440 V 3PH with integral 4 speed geared transmission, size one combination magnetic reversing starter in Nema 12 encloure with built-in door type fusible disconnect switch
External manual reset and control transformer providing 110 volts at oil tight push button stations; power on light;
D1-6" camlock spindle nose with 21/4" through hole;
Sheldon Cross Slide with positionable compound;
Sheldon Visual Group of satin-chrome micrometer dials for carriage stop and tailstock, apron, compound and cross feed handwheels;
Sheldon sustained accuracy group of flame hardened beds with all V-way and flat ways hardened, hard chrome cross slide dovetails and ways, hardened cross feed and compound screws, anti-backlash compensating nut;
Cross slide lock; carriage lock; one-shot lubrication system for bed, carriage and cross slide ways, and cross feed nut; automatic feed stops for power longitudinal and power cross feeds; micrometer carriage stop; dial gear box with built-in reverse lever that provides 80 power longitudinal and power cross feeds from .0005" to .120" through feed rod and 80 different thread pitches through precision lead screw;
Chip pan; front kick pan; two driving studs; centers; center sleeve;
Tang drive in tailstock spindle; thread chasing dial; tool post assemble; leveling bolts; wrenches, and operation manual.
No. A-2271 Hardinge-Sjogren Speed Collet Chuck, hand wheel, 1-1/16" capacity, for Hardinge 5C collets,
No. 86D1-6 6 Jaw, 8" diameter ajust-Tru, two sets of Jaws (not shown) ID & OD.
No 84D1-6 4 Jaw, 8" diameter chuck.
Collets are 5C and made by Hardinge, Royal, and Precision.
I have included some pages from the manual in the pictures for further info. On the top picture cluck Supersize, the click the picture on the window again for maximum size. Manual pages are pictures 7 -12.
I have described this item to the best of my ability. I assure you that I haven’t withheld any information pertinent to the effectiveness of this item. We are not machinery dealers. Everything was purchased new years ago. We are trying to empty out the factory, therefore we can’t take returns. This sale is final.
Item weighs about 3500 lbs and is beyond the capacity of my fork lift. I will help load your truck, or work with your machinery mover for free.
