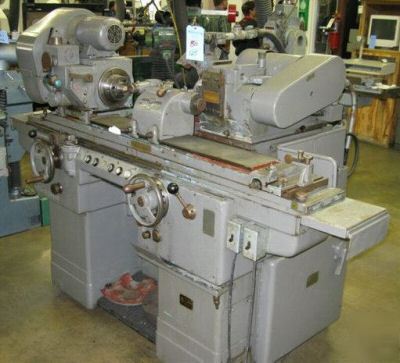

10" x 24" cin-milacron univ cylindrical grinder #24950
10" x 24" CINCINNATI-MILACRON UNIVERSAL
New 1961, Serial No 4U2B5KN-4, Ltr OL
Hydraulic Longitudinal Table Feed
Tailstock (Lever & Screw-Type)
Swing Over Table, Maximum................ 10.9375"
Grinding Diameter w/12" Wheel............ 10"
Distance Between Centers, Nominal........ 24"
Grinding Wheel Diameter, Standard........ 12"
Grinding Wheel Width, Standard........... 1"
Grinding Wheel Hole Diameter............. 5"
Table Swivel Taper Toward Wheelhead...... 4.5" TPF
Table Swivel Taper Away Wheelhead........ 2" TPF
Table Swivel Angle Toward Wheelhead...... 8-DEGREES
Table Swivel Angle Away Wheelhead........ 3-DEGREES
Lower Grinding Wheelhead Swivel Range.... 110-DEGREES
Upper Grinding Wheelhead Swivel Range.... 90-DEGREES
Workhead and Tailstock Center Tapers..... #7 JARNO
Grinding Wheel Speed, Maximum............ 2060 RPM
Workhead Spindle Speeds, Range........... 50 to 500 RPM
Table Longitudinal Feeds, Range.......... 3 to 280 IPM
Grinding Wheelhead Spindle Motor......... 2.2 KW
Workhead Motor, Horsepower............... .8 KW
Weight, Approximately.................... 4900 LBS
PRICE: F.O.B. OUR WAREHOUSE............. $3,950.00
All machines/equipment subject to prior sale.
