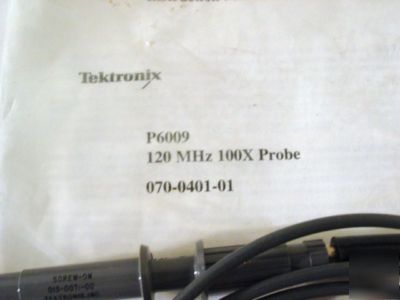

Tektronix 070-0401-01 P6009 120 mhz 100X hi-volt probe
This listing is for a high voltage passive probe
* List Price: Approximately $500
___________________________________________________________________________________
Here is some information from the manufacturer...
The P6009 is a low-input-capacitance, high-voltage passive probe with a signal attenuation of 100X. It is designed for use with wide-band, real-time oscilloscopes, and may be used with any plug-in unit or oscilloscope having a 1-megohm input resistance and an input capacitance of 15 to 47 pf.
The probe is available with a standard BNC output connector or with a special BNC connector for readout oscilloscopes. The readout version is recommended for use only with a TEKTRONIX 7000-Series Mainframe (with readout) or the TEKTRONIX 485 Oscilloscope. When used with these instruments, the special connector on the probe causes the oscilloscope readout to switch, automatically correcting for attenuation of the probe.
The P6009 consists of a probe-body assembly, a 9-foot cable, and a compensating box assembly with a BNC connector. The compensating box houses adjustments for optimizing the high-frequency response of the probe.
* 7A12, 7A13, 7A15, 7A16, 7A18, 7A22, 7A26, 7A42, 7D12, 7D20
* 434, 455, 464, 465, 466, 475, 485
* 2213, 2215, 2235, 2236, 2335, 2336, 2337, 2445, 2465
* Bandwidth : DC to 120 MHz
* Input Resistance : 10 M?
* Input Capacitance : approx. 2.5pF
* Scope Input Resis : 1 M?
* Compensation Range : 8pF to 47pF
* Max Rated Voltage : 1.5 KV RMS
* Attenuation : 100X within 3% (including 1 M?, ±2% amplifier input)
* Input Resistance : 10 M? within 2% (includes input R of amplifier).
* Input Capacitance : Approximately 2.5 pF.
* Compensation Range : 8 pF or less to at least 47 pF.
* Bandwidth (-3 dB) : At least 120 MHz (with a 7A16 Amplifier and a 7704 Mainframe)
* Maximum Input Voltage : 1.5 kV (DC or RMS), derated with frequency.
* Weight : Approximately 8 oz. net.
* Dimension: PROBE BODY : @4 inches, length; @0.8 inch, maximum outside diameter.
* CABLE: @9 feet between strain relief bases.
* COMPENSATION BOX: @2.9 inches, length; @1.2 inches. maximm outside diameter.
* Probe will operate within specifications over the following ranges:
* Temperature : -15° to +75°C.
* Altitude : To 15,000 feet.
___________________________________________________________________________________
This is used and in good condition. Guaranteed to be in proper working order.
Check out the picture for more information. Feel free to ask any questions. WANT TO REACH ME BY PHONE? Feel free to call me (Trent) toll free (***) 972-1346.
