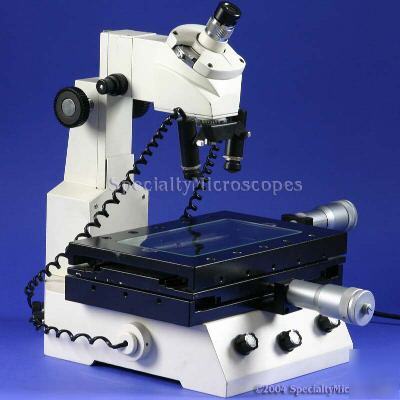

Measuring toolmakers microscope w/ x-y micrometers
Search in titles & descriptions
Coiled Spring 20x Magnification
Photo Taken Thru Eyepiece Tube
Photo Taken Thru Eyepiece Tube
* High Precision Toolmaker's Measuring Microscope!
* Excellent for Precise Measurements of Angles, Lengths, Diameters, and any Distances on the Specimen!
* Toolmaker's Microscopes are also known as Measuring Microscopes.
* The Stage is Equipped with Linear Scales to Measure Stage Movement.
* Stage Micrometers are Mounted to the Frame and Control the Stage Movement in the X and Y Axes to Precisely Measure Positional Differences on the Specimen.
* Wide Variety of Applications for this Instrument!
* Use it for the Traditional Toolmaker's needs such as Examining the Edges of a Cutting Tool or the outcome of utilizing the Tool.
* Use it to verify surface finishes, measure surface defects and hardness test indentations, and verify small parts alignment.
* It's perfect for Thread Inspection and Verification of Tool Angles.
* Wide Field 10x Eyepiece with Built-In Crosshair Reticle.
* Observation Tube: Monocular, Inclined at 30 Degrees from Vertical.
* Goniometric Head for Measuring Angles.
* Eyepiece Protractor: Graduated 0 - 360 Degrees with Adjustable Vernier Reading to 6 Min.
* Two Illumination Systems to Meet Any Application!
* Sub-stage Transmitted Variable Intensity Illumination (from bottom) Provides Green Filtered Collimated Light that is Excellent for Viewing Contours and Transparent Objects.
* Oblique Incident Variable Intensity Illumination from Twin Spot Lights with Adjustable Inclination provides Light Source on Each Side of Object. Great for Uniform Illumination of Surface Items with Textures.
* 6V/20W Halogen Bulb in Base.
* Large Measuring Stage: 300 mm x 200 mm.
* Stage Movement: X = 50mm, Y = 50mm. (Maximum of 65mm x 145mm).
* Glass Stage Plate, 220mm x 120mm.
* Two Micrometer Heads: One for X-Direction, One for Y-Direction.
* Standard Micrometer Head: 0 - 50mm, Least Count 0.01mm.
* Stage has Interchangeable Intermediate Table to receive Different Optional Accessories.
* Hard Steel Ball Bearings for Accurate and Smooth Stage Movement.
* Fine and Coarse Focusing Knobs on Both Sides of Microscope.
* Coarse Adjustment Travel Range: 180mm. (Head Movement Distance Up/Down).
* Rack and Pinion Steel Gears for Easy and Better Head Movement.
* Extra Large and Heavy Base for Overall Rigidity and Stability.
* Total Overall Height of Microscope: 540mm.
* Instrument Weight: 49 lbs.
* Optional: Measuring Eyepiece with Reticle: TM-8: Metric Coarse Thread P, 0.25mm to 1.0mm.
* Optional: Measuring Eyepiece with Reticle: TM-9: Metric Coarse Thread P, 1.25mm to 2.0mm.
* Optional: Measuring Eyepiece with Reticle: TM-13: Whitworth Thread 60 - 26 TPI.
* Optional: Measuring Eyepiece with Reticle: TM-14: Whitworth Thread 24 - 18 TPI.
* Optional: Measuring Eyepiece with Reticle: TM-11: 55 Degree Angle.
* Optional: Measuring Eyepiece with Reticle: TM-12: 60 Degree Angle.
* Optional: Measuring Eyepiece with Reticle: TM-10: Concentric Circle 0.05mm to 4.0mm.
* Manufactured under ISO: 9001 Standards.
* Protective Molded Styrofoam Container.
* Precision Ground Glass Lens.
* Quality Construction, Metal Frame.
* 110 VAC (email about 220V availability).
5 Year Manufacturer's Warranty
* The warranty covers manufacturing defects. Abuse or damage due to dropping is not covered.
* If your system needs repair, simply let us know and we will see that it is back in service ASAP.
RISK FREE - MONEY BACK GUARANTEE - 10 DAY TRIAL PERIOD!
QUALITY SERVICE AFTER THE SALE!
If you have questions or issues after the sale, please call our technicians. They are just as happy to talk to you after the sale as before. We hire skilled sales technicians who are required to have a Bachelor’s Degree in biology, engineering, or related science fields.
