Precision quincy paint line oven (20771)
PRECISION QUINCY,Paint Line Oven,Gas Fired,New 2001,Nice Our stock number: 20771 MODEL........................Dry Off Oven
SERIAL NUMBER................14122 Year: 2001

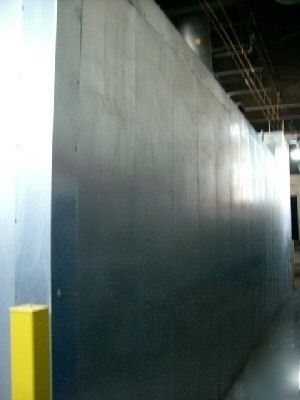

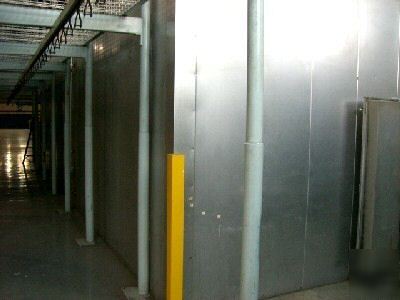

41'7" long x 10' wide x 125" tall
Burn Box Size: 55" long x 194" wide x 135" tall

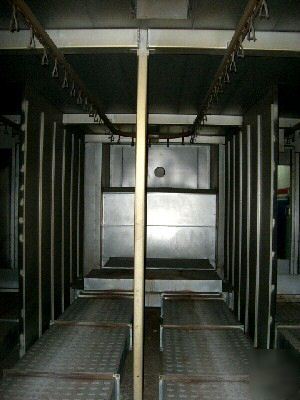

Oven Opening: 47" right to left x 72" tall

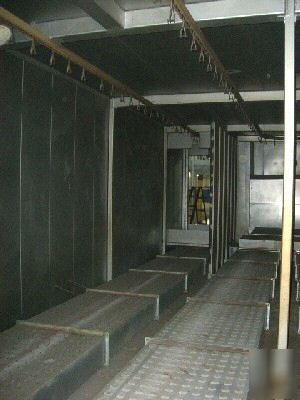

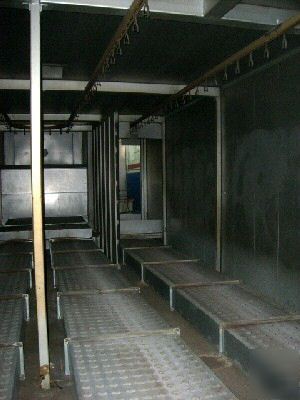

14" tall slot in opening for over head conveyor
37-1/4" tall bottom panel can be removed for large opening

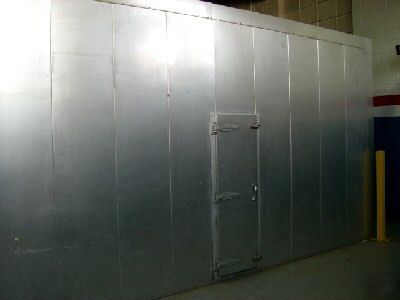

22" x 70" Main door opposite end of burn box
Oven box is 161'1/2" tall at inlet and outlet of oven
Oven operation voltage 480 60/3 Phase

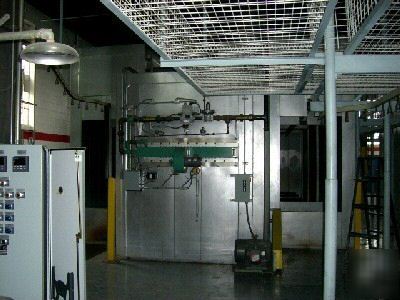

Honey Well Temp. Safety control for combustion chamber, 550
Honey Well Temp safety control for work area, 450 degrees
Vestibule Start Stop Button, Recirc Start Stop Button
25 HP 1770 RPM 230-460 V 60/3 TEFC Baldor Motor
Oven is complete and set up in a plant in Cincinnati, Ohio and can be inspected.
All items are sold SPECIFICATIONS SUBJECT TO VERIFICATIONS.
All items are offered locally and could be sold previous to end of store listing.
