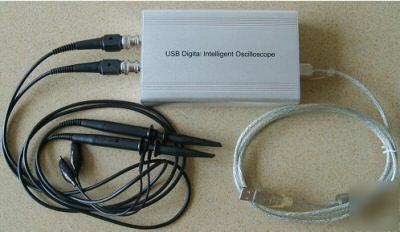

DSO2300 usb digital oscilloscope
DSO2300 USB Digital Oscilloscope USB Oscilloscope
- 100Ms/s, 50MHz, 2-channel USB1.1/2.0 Compatible Digital Oscilloscope
- Logic Analyzer, Spectrum Analyzer (FFT), Record & Playback, Voltmeter,...
- Easy-to-use with Intuitive User Interface
DSO2300 is an intelligent 8-bit two-channel PC based USB digital storage oscilloscope with high performance. It runs on any USB1.1 or USB2.0 equipped PC using Windows 98/2000/XP. It connects to your PC with the included USB cable for both data transfer and power, so no external power supply is needed. It has up to 100 Ms/s real-time sampling rate and 50MHz bandwidth.
This PC based scope is controlled through a point-and-click Windows software interface. It is an ideal multi-instrument solution which combines the functions of logic analyzer, spectrum analyzer, waveform recorder, signal generator, cymometer, voltmeter, etc. all in a single interface. The device is delivered including two probes and one USB cable, enabling you to start right away. This would be a lightweight, handheld device that is ideal for engineers, students and anyone looking for an easy-to-use, low-cost and powerful oscilloscope.
Size: 144x88x38(mm) (excluding cable and probes) Weight: <0.25kg (excluding accessories)
USB1.1/2.0 Port, power can supplied directly through USB, no external power supply required
* 100Ms/s (100 million samples per second) Sampling Rates
* 50MHz Spectrum Analyzer / FFT
The two channels can be the trigger of each other.
Waveform is able to printed on-line to printer.
Not only current waveform but also continuous waveform. Can be recorded as .jpg file.
Data can be stored in Excel,Word or Notepad formats.
A point-and-click software interface with active cursors.
Displayed location and color can be adjusted.
Run directly from .exe file.
From 10mV/Div to 5V/Div, total 9 divisions.
From 20ns/Div to 1s/Div, total 24 divisions.
(Rising Edge / Lever / Falling Edge)
The two channels can be the trigger of each other.
* Channel maximum input voltage 50Vpk+DC
* Maximum duration input voltage
0 .5V/Div ~ 0.1V/Div: 20Vpk+DC
0.05V/Div ~ 0.01V/Div: 2Vpk+DC
* Waveform on-line record capacity
* Compensated lead frequency
