Robotic process systems 202 tl solderability tester

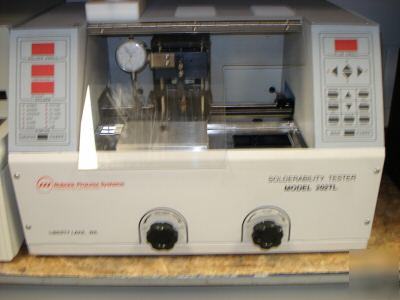

ROBOTIC PROCESS SYSTEMS 202 TL SOLDERABILITY TESTER
The RPS 202TLâ„¢ is a microprocessor-controlled solderability test system that meets MIL-STD-202, method 208/MILSTD-2000 with speed and precision. All process parameters are set digitally. The microprocessor is capable of storing 8 different processes in memory for fully automatic operation. These process parameters include: flux and solder emersion and immersion speed, solder, flux and traverse dwell times, number of cycles required and solder temperature. The RPS 202TL also has a calibrated depth gage that permits adjustments to 0.001" over the flux and solder pots.
THE 202 TL IS A STAINLESS STEEL STATIC SOLDER POT WITH CARTRIDGE HEATERS. THIS ASSURES RAPID AND UNIFORM HEATING. THE THERMOCOUPLE RUNS THE LENGTH OF THE VESSEL AND IS LOCATED TO BEST APPROXIMATE THE TYPICAL DEPTH FOR LEAD IMMERSION.
SOLDER TEMPERATURES MAY BE CONTROLLED WITHIN A BAND OF + OR -3 DEGREES C OF SETPOINT. SET POINT RANGE IS 200-300*C. A PROGRAMMED TOLERANCE MAY BE USED TO INTERLOCK MACHINE OPERATION.
LEAD SCREW DRIVEN...CAN HOLD UPTO 45 DEVICES DEPENDING ON SIZE.
120V, 15 AMP, 60 HZ, SINGLE PHASE
EXHAUST BLOWER RATED AT 250 CFM MINIMUM AND A MINIMUM OF 2 SQUARE FEET, HOOD 3 FT ABOVE TABLE
Operation: Automatic with (8) eight different processes in
Capacity: Varies - typical capacity up to 45 axial and 21 radial
Immersion Depth: Controlled by adjustable stops
independently for flux and solder.
Speed In/Out: From .5" to 2.5"/sec.
Immersion Time: From . 1 sec. to 1 0 sec
Temperature Controller: Remote proportioning,
Usable Pot Surface is: 2" x 4" Static, with automatic dross
Electrical Input: 12O VAC/1 PH/6OHtz/10 Amperes
Base constructed of heavy gauge steel with leveling feet, for
All components are epoxy coated.
Dimensions: 24"W x 16"H x 20"D
Specifications subject to change without notice.
SOLD RUNNING AND WORKING WITH A 7 DAY RIGHT TO RETURN
