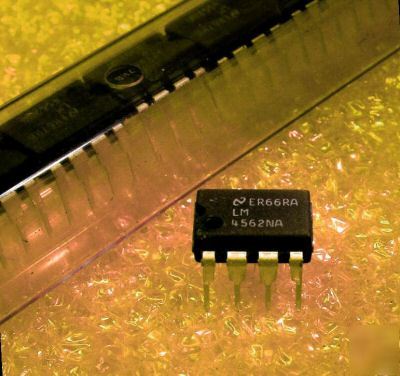

LM4562 hifi audio dual low noise opamp, psrr 120DB (X2)
High Performance, High Fidelity Audio Dual OpAmp
? ?Power Supply Voltage Range ±2.5V to ±17V
? ? THD+N (AV = 1, VOUT = 3VRMS, fIN = 1kHz)
? ?Input Noise Density 2.7nV/ sqrtHz (typ)
? ?Gain Bandwidth Product 55MHz (typ)
? ?Open Loop Gain (RL = 600?) 140dB (typ)
? ?Input Bias Current 10nA (typ)
? ?Input Offset Voltage 0.1mV (typ)
? ?DC Gain Linearity Error 0.000009%
The LM4562 is part of the ultra-low distortion, low noise, high slew rate operational amplifier series optimized and fully specified for high performance, high fidelity applications.
Ultra high quality audio amplification
State of the art phono pre amps
High performance professional audio
High fidelity equalization and crossover networks
High performance line receivers
See also the following updated versions of the LM4562 (same or better specs):
LME49720 Dual OpAmp (in TO5 metal case)
LME49860 Dual OpAmp, High voltage 44V supply (for 15V rms mixing comsole requirements)
If they are not listed in our store, they may be sold out, please contact us for re-listing
US: $3.75 Canada: $4.50 International: $5.50 Parcel Post.
option is NOT FAST, and may experience delays that are not under seller's control. In choosing Parcel Post S&H option you agree that you have no time constraints, and you do not hold seller responsible for any transit delays.
2-nd item: saves 50% of its S&H
items 3, 4: each saves 60% off their S&H
items 5, 6, 7: each saves 70% off their S&H
items 8 and higher: save 80% off their S&H
Items are ordered highest S&H amount first.
