2" x 48" phillips column type deep hole gun drill

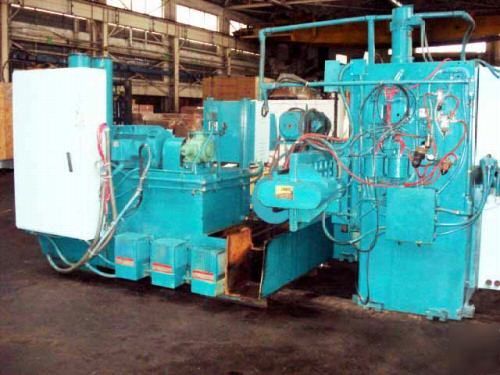

2" X 48" PHILLIPS COLUMN TYPE DEEP HOLE GUN DRILL

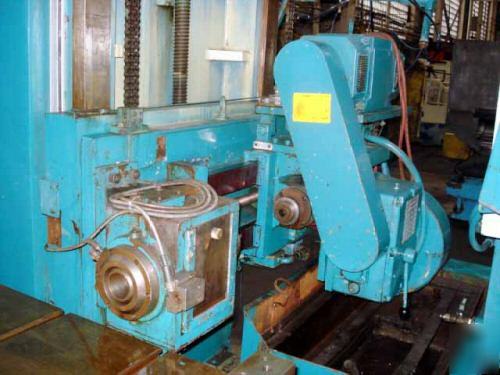

Phillips Way Type Gun With Phillips Single Axis Positioning Work Base For 2-Axis Work Positioning.

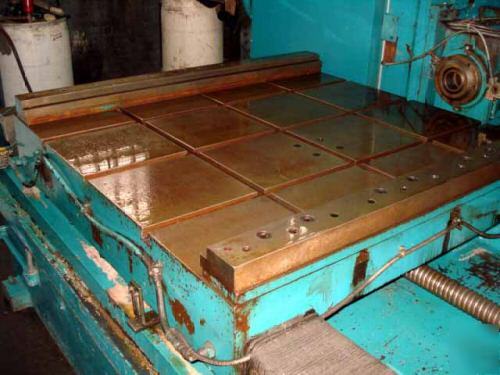

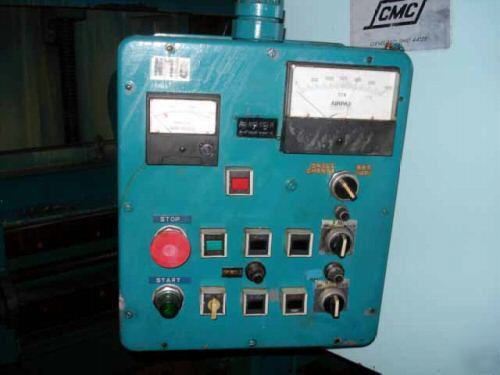

Cleveland Motion Controls.15 HP Spindle Drive. Getty's 3-Axis Drive Motors. Pendant Controls For Jog, X-Axis Left-Right, Y-Axis Up-Down. LED Spindle RPM Indicator. Thumbwheel Selector For Spindle Feed IPM. Load Meter. 48" X 48" Cross T-Slotted Ball Screw Driven Positioning Table. Ball Screw Driven Vertical Head Positioning On 2 Column-Ways. 30 HP High Pressure Phillips 30-450-40 Coolant System With Filtration By Baffles & Cartridge Filters.
Chip Box. Miscellaneous Gun Drills. Large Quantity Of Bushings And Collets. Miscellaneous Repair Parts Including Gettys Motor And Electronics.
Drilling Range, Solid Steel 2"
Spindle Speeds (Variable) 389-5468 RPM
Spindle C/L to Table Maximum 24.5"
Spindle C/L to Table Minimum 10.5"
Coolant Reservoir Capacity Dirty (Settling Area) 300 Gallon
Coolant Reservoir Capacity Clean 150 Gallon
