New atco precision tool co. sine plate SP5-36 mint 5"

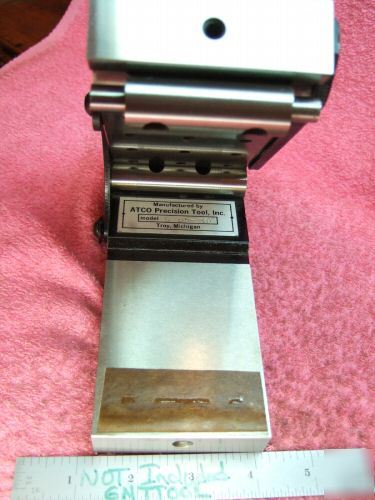

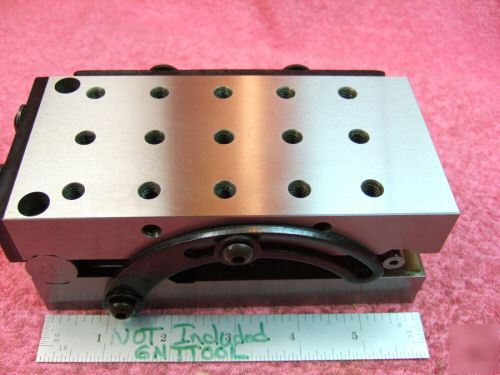

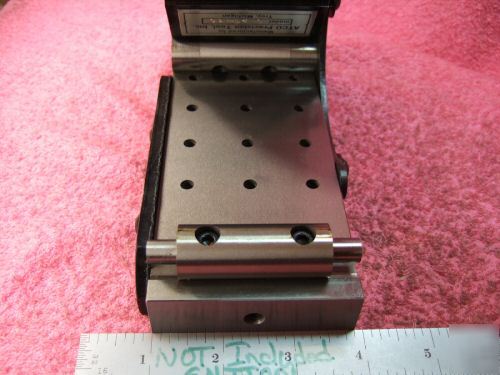

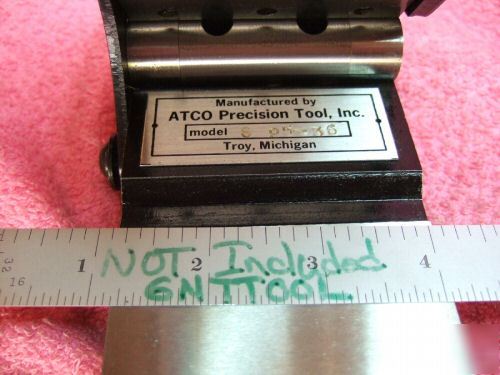

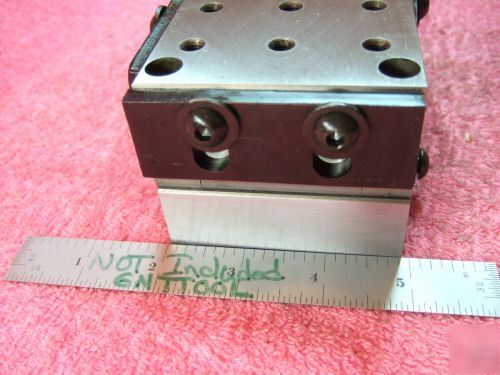

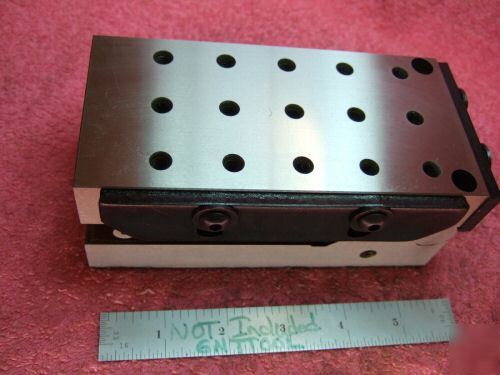

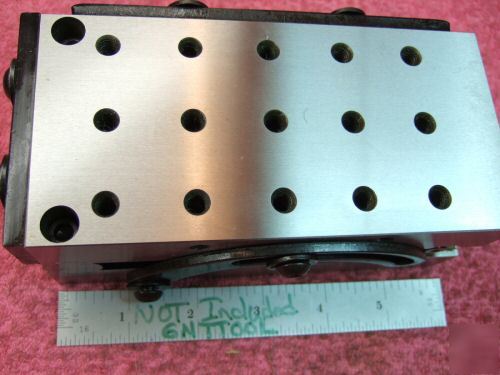

ATCO PRECISION TOOL CO. SP5-36 HINGED SIMPLE SINE PLATE 5.0" BETWEEN CENTERS 3X6 SINE PLATE AS SHOWN. BRAND NEW AND STORED ONLY IN A GERSTENR BOX AND HAS NO MARKS STILL HAS PAINT IN SOME HOLES!!!!!!! SEE PICS. (15) TAPPED 1/4"X20 HOLES AND (9) TAPPED 1/4" X 20 ON SIDES AND ENDS OF TOP PLATE FOR RAIL (2 INCLUDED AND 1 STRAP). BOTTOM PLATE ALSO HAS (2) 1/4" X 20 TO BOLT STRAP AND (1) 1/4" X 20 ON END TO USE AS TENSIONER WITH ONE DIRECTLY ABOVE IT ON TOP PLATE. SPECS BELOW FROM ATCO TOOL CO. WEBSITE FOR THIS TOOL WHEN NEW. CURRENT LIST IS $422!!!!!! SAVE SOME $$$$ HERE!
* Made of quality steel, hardened to 58-62 Rc.
* Minute angle step .200" built into the gage block roll. Eliminates steps in base plate.
* Two hardened and ground side rails and one locking strap included.

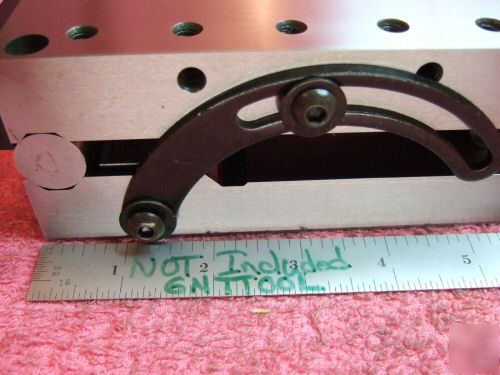

* Locking strap always remains below the top surface.
* Large hinge pins for extra strength.

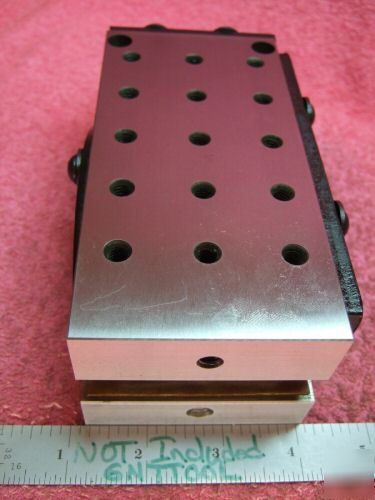

* Tapped holes in top plate 3 x 6" ARE 1/4-20.
Center Distance of Rolls: 5" within .0002"
Parallelism and Squareness: .0002"
CHECK OUR STORE FOR MANY MORE NICE HARD TO FIND TOOLMAKER ITEMS,INCLUDING HERMANN SCHMIDT RADIUS DRESSERS, J&S RADIUS DRESSERS, VISES AND PARALLEL SETS, MATCHED PAIRS OF ANGLE PLATES,VISES, VBLOCKS AND MANY OTHER HARD TO LOCATE ITEMS.
Questions? Contact us ****@windstream.net
