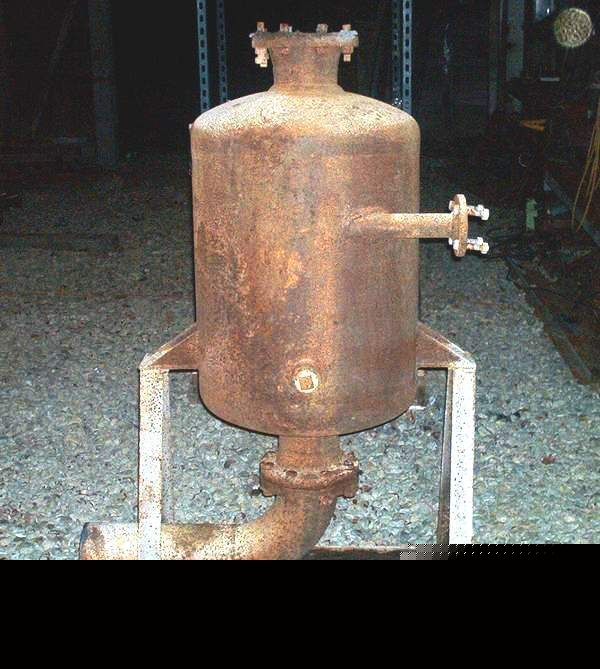

200 psi steam boiler blow down blowdown separator tank
Excellent Condition, Used, From Certified high pressure system running 200 HP at 200 PSIG. Also good for some larger boilers and all smaller ones up to 200hp 200psig. Well, that makes sizing a blowdown tank easy for a lot of boilers.
The steam goes up, the water goes down along with all that pesky sludge that was building up in the bottom of your boiler vessle.
Yup right now, as we uHmmm.... speak? it's building up, lowering your heat transfer from your fuel...ouch.
That pesky sludgy sediment just waiting to breed with other who knows whats and ending up on your pipes and tank in the form of scale.
That poor tank, it needs a good flush at least once a day., Blowdown, A must for proper boiler maintenance.
Designed for longer duration blow down from the larger water capacity of , Horizontal Fire Tube Boilers (Scotch Boilers) Will handle most anything of lesser capacity .
* Inlet flange size 6" 4 bolt
* Vent and Drain Flange Size 11" 8 bolt 9/16" bolt
* Tank Height Flange to Flange 47-1/2"
* Overall Height Top Flange to floor 61-1/2"
* Horizontal Length 40-1/2" (6" drain pipe sticks out 6-1/2" extra)
* Bottom of pipe to floor 2" slopes to 2" from flange to frame end
