14" ENGINE LATHE, Victor 1440B With Tooling P
14" ENGINE LATHE, Victor 1440B With Tooling P

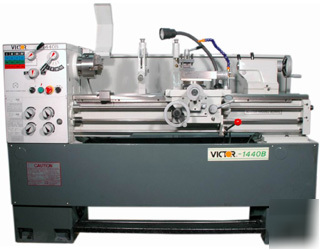

New Victor 14" x 40" Engine Lathe
- Max. swing over bed 14” (355 mm)
- Swing over cross-slide 8-5/8” (219 mm)
- Distance between center 39.5” (1,003 mm)
- Number of spindle speeds 12 Speeds
- Range of spindle speeds 40 ~ 2,000 rpm
- Hole through spindle 1-1/2” (38 mm)
- Taper of spindle bore M.T. No. 5
- Inch threads 4 ~ 56 TPI x 34 kinds
- Metric threads 0.4 ~ 7.0 mm x 26 kinds
- Range of longitudinal feeds 0.0020” ~ 0.0548”/rev x 32 kinds
- Range of cross feeds 0.0007” ~ 0.0178”/rev x 32 kinds
- Cross slide travel 7“ (178 mm)
- Compound rest travel 4“ (100 mm)
- Tailstock quill taper M.T. No. 3
- Tailstock quill travel 4-7/8” (120 mm)
- Main motor / Coolant pump 3 HP 3Ph / 1/16 HP 3Ph
- Overall dimension of lathe (L x W x H) 73” x 29.1” x 47”
- Packing size of lathe (L x W x H) 75.6” x 29.1” x 62”
- Net / Gross weight 1,650 / 1,936 lb. (750 / 880 kg)
• Specifications are subject to change without notice for further
- Chuck cover with limit switch
Optional Equipment (call for pricing):
- Quick change tool post & holders
- Digital Readouts - various choices
Machine Location: HARRISON, NJ
