1982 hardinge hlv h precision toolroom lathe excellent

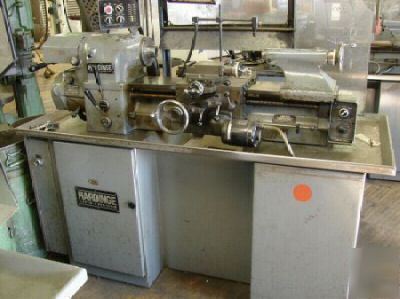

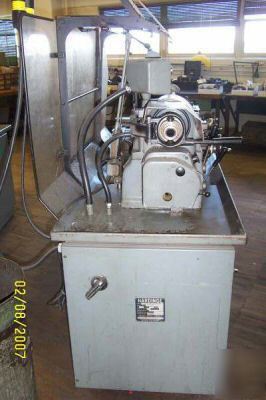

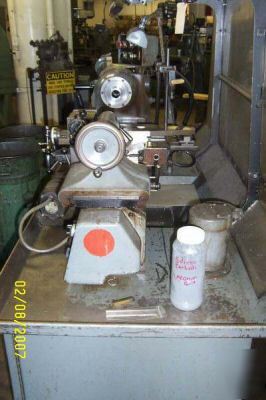

Excellent condition Hardinge HLV-H lathe

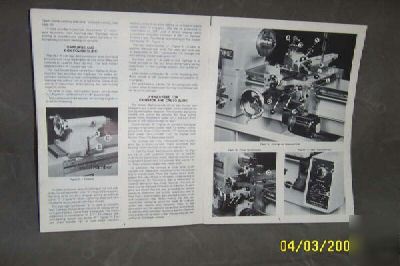

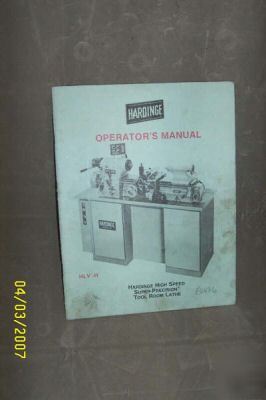

Comes with operator manual and tapper attachment.

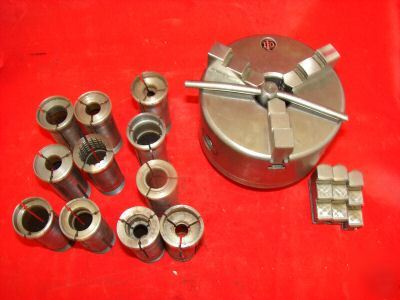

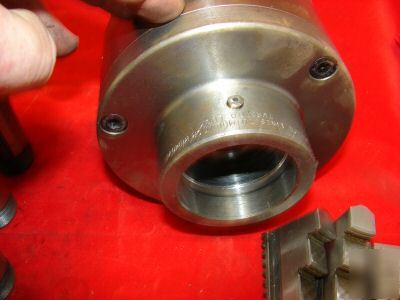

5" 3 jaw chuck with id od jaws and a lot of collets.
Came from shaeffer pen corp and we believe its a one owner machine and the unit is in excellent maintained and working order.
Outstanding bargain compare to new price over $50,000
HARDINGE PRECISION TOOL ROOM LATHE,
MODEL HLV-H, S/N: HLV-H-10778-T, NEW 1982
SPINDLE CONSTRUCTION ................. HARDINGE BALL BEARING
SPINDLE NOSE ......................... HARDINGE TAPER
WITH ROUND TYPE 5C COLLETS ..... 1-1/16"
WITH STEP CHUCKS ............... 1-1/16" TO 6"
WITH JAW CHUCKS ................ 5"
WITH EXPANDING COLLETS ......... 3"
VARIABLE SPINDLE SPEEDS .............. 125 - 3,000 R.P.M.
HOLE THROUGH SPINDLE ................. 1-1/4"
SWING OVER BED ....................... 11"
SWING OVER CARRIAGE .................. 9"
SWING OVER CROSS SLIDE ............... 6"
DISTANCE BETWEEN CENTERS ............. 18"
COMPOUND SLIDE TRAVEL ................ 3"
CARRIAGE POWER FEED RANGE ............ 5/16 - 7 I.P.M.
CROSS SLIDE POWER FEED RANGE ......... 3/16 - 4 I.P.M.
TAILSTOCK SPINDLE DIAMETER ........... 1-3/8"
TAILSTOCK SPINDLE TAPER .............. #2 MT
INCH THREADING RANGE IN GEARBOX (36) . 11 - 108 T.P.I.
METRIC THREADING RANGE IN GEARBOX (36) 0.275 - 2.7 MM
APPROXIMATE WEIGHT ................... 1,700 LBS.
* SOLID FULL BEARING TAILSTOCK
_________________________________________________________________
You never know what bargains you will find!
Any questions email or call Chris @ (***)-433-3597
