Sinometer dual trace 2-channel analog 20MHZ oscillocope

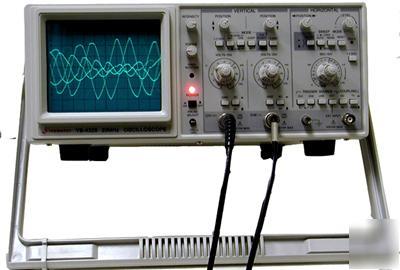

Sinometer Dual-Channel 20MHz Oscilloscope, YB4328
The Sinometer YB4328 is a dual trace general purpose oscilloscope, it is an ideal choice for any electronics hobbyists, lab technicians, or repair personnel. The unit comes with 1 year warranty.
* High sensitivity up to 5mV/div (1mV/div with magnifier)
* Full range auto sweeping, flexible trig source, alternate trig mode enables clear displaying of two different signals
* Lowest sweep rate; 10s/div
CH1 (Y1),CH2 (Y2), CHOP, ALT, ADD, X-Y
Sensitivity and Accuracy (Both Y1 & Y2)
5mV-10V/div, 5X MAG, in 12 calibrated steps of 1:2:5 sequence
DC: 0 ~ 20Mhz / AC: 10Hz ~ 20Mhz
25mV/div, 50 ohm, 20Hz-10MHz(-3dB)
0.1 uS-0.2S/div, 20 steps of 1:2:5 sequence
5 X (Maximum sweep speed is 20 ns per division)
External Trigger Input Impedance
5Hz ~ 20MHz: INT - 1 div; EXT - 0.2Vp-p
TV Signal: INT - 2 div; EXT - 0.3Vp-p
DC: 0 ~ 1 MHz (-3dB); AC: 10Hz ~ 1 MHz (-3dB)
All of our new products come with a product warranty from the manufacturer that covers any defects within the stated warranty period. Repair or replacement is at our sole discretion. For DOA (Dead on Arrival) items (which is very rare), please email or call us @ (***)-628-6088 to obtain a RMA # (Returned Merchandise Authorization #) from us. we will replace your item with a new one within 14 days after we receive it from you.
Founded in 1997, our company has been wholesaling and online retailing our test equipments for almost a decade. Our homepage Multimeter Warehouse has been constantly ranked top 5 in all the major search engines such as Google, Yahoo and etc when you enter the keyword "multimeter".
We import all our products directly from our manufacturers, there's absolutely no middle man in between, and that's the very reason we can sell our products at a much lower price than our major competitors. All our products are designed & engineered in conformance to European & American safety standards with over 90% approved by EMC, LVD, GS and UL. Our line of products include Digital & Analog Multimeters, Clamp on Meters, Fixed and Variable DC Power Supplies and various kind of test instruments such as Tachometers, Moisture Testers, Thermometers, Digital Tape Measure and etc. Currently we are selling our products under brand names including Mastech, Sinometer and Tekpower.
