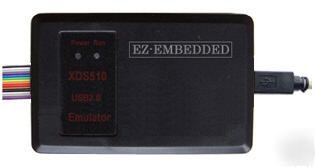

XDS510 USB2.0 jtag emulator for ti dsp
XDS510 USB2.0 JTAG Emulator for TI DSP XDS510 USB2.0 JTAG Emulator for TI DSP
XDS510 USB2.0 JTAG Emulator for TI DSP is designed to be used with digital signal processors (DSPs) operating at 1.0-5.0 volts. The emulator is a USB2.0 device. It is fully plug and play compatible. XDS510 USB2.0 JTAG Emulator for TI DSP is designed to operate with TI Code Composer Studio IDE debug tool and compatible with Windows 98 / 2000 / XP.
Ø Standard high-speed USB2.0 interface, up to 480MB/s data transfer rate, plug-and-play, compatible with USB1.1 host
Ø Standardized JTAG emulation interface, save user’s computer resources; interface protection design to fully support the hot-plug at JTAG interface
Ø Support TI CCS3.1 integrated development environment, support C and Assembler
Ø Realize Flash program for F28x/F240x/F24x/F20x
Ø High emulating speed, support RTDX
Ø Not use the system resources
Ø Self-regulate to DSP voltage of the object board
Ø Prevent system from crush and non-reboot when the power of target board goes off
Ø Able to emulate TI’s TMS320C2000/3000/5000/6000, C3X/4X/5X/8X, DM642, OMAP families
Ø Easy to install, run stable at high speed, lower price
Ø 1 X XDS510 USB2.0 JTAG Emulator
Ø 1 X CD-ROM (User manual & Driver)
