New quick air mini connector male & female kit riland
Mini Quick Air - Male & Female Connector Kit

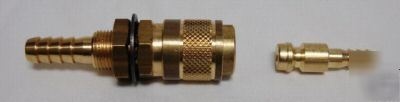

You get the brand new kit shown above.
This type of quick air connector kit is used on our Riland Tig200WSE (tig200pacdc) machines for the torch argon connection. These are also perfect for our Mig conversion to adapt a Mig Spoolgun to operate on a Tig200WSE or other Riland Machine.
These are solid brass 4 bearing mini quick air connectors. The chassis side is self sealing upon nipple release. Comes as pictured with spring steel locking washer and brass nut. The thread length is 0.526" (13.37mm) and the barbed nipple has an OD of 0.317" (8.06mm). Total length of the chassis side is 2.38" (60.46mm).
The hose end or small push-in quick release side is not self sealing but is open hole all the way through. The hole has a diameter of 0.136" (3.45mm). The barbed nipple has an OD of 0.236" (5.99mm) and is 0.583" (14.8mm) long. The total length of the hose side is 1.184" (30.08mm).
Normal operating pressure is 150psi, Max 200psi. Nominal flow of 2.5CFM.
Each win gets 1 kit which consists of chassis mount and hose connector with chassis mount washer and nut.
We have lots of other connectors in our listings, including dinse 25, 50, 2pin, 3pin, 5pin, 7pin and female dinse connectors.
