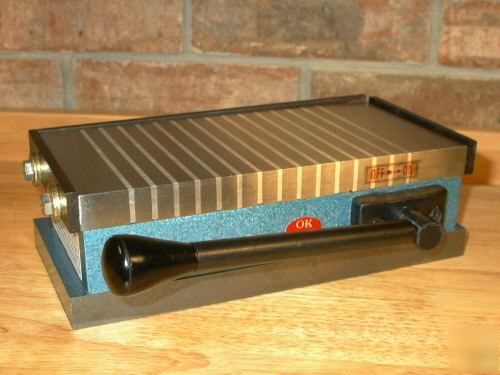

New 4" x 8" magnetic chuck for grinding milling cnc
This is a brand new 4" x 8" Magnetic Chuck for use in surface grinding, milling, and CNC machining. Here are the specs:
Chuck surface dimensions: 3-15/16" x 7-15/16"
Overall dimensions: 6-1/2" W x 8-7/8" L 2-5/8" H
Magnets: (15) 3/32" x 5/8" x 3-15/16" spaced 13/32" apart
Detachable handle: 1/2" x 6-3/4" rotates 180 degrees to engage magnets
(3) Positionable stops on sides & back of chuck can be raised, lowered, or removed
Construction materials: Steel, cast iron, & aluminum
