Mini-7SEG-ca (7-segment common anode) basic stamp, pic

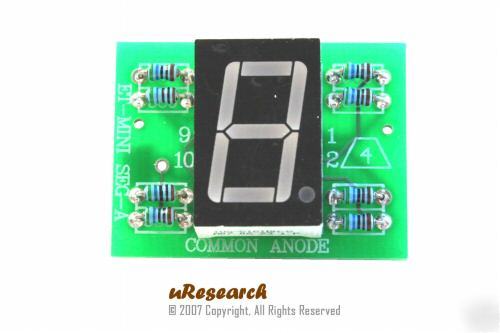

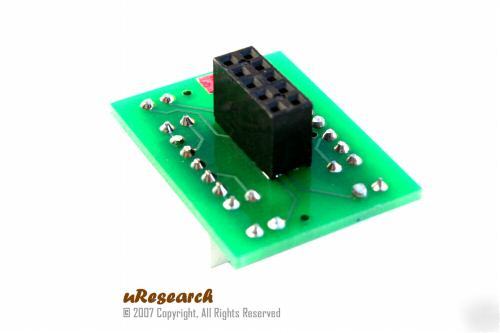

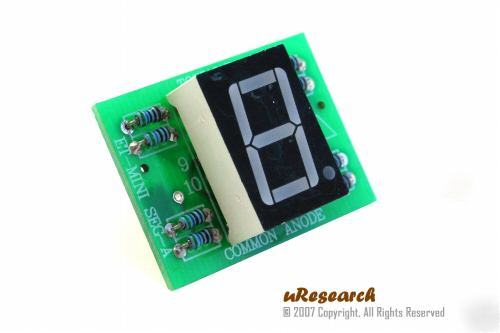

The module can be interface by connect the common pin to VCC and pin a-dp to 8-bit I/O pins of any microcontroller. A segment can be light up by sending logic LOW to the display. It is easier to decode if user interface I/O pin of microcontroller as same as 7-segment’s pin arrangement. PCB size is 1.20” x 0.90”
· Onboard current limited resistors
For more information please see: MR-MINI-7SEG-CA User Manual
“This is sold fully assembled and tested”
For more exciting products please visit WWW.MICRORESEARCH.US
