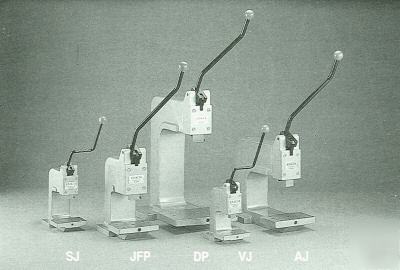

Exacta manual toggle press-model jfp
·Model JFP- Originally piced at $795 - Special Price NOW only $590.00, plus applicable freight!
Force Output: 1320lbs, Mechanical Advantage 1:100, Stroke of Ram .984, Press Head Adjustment 3.150

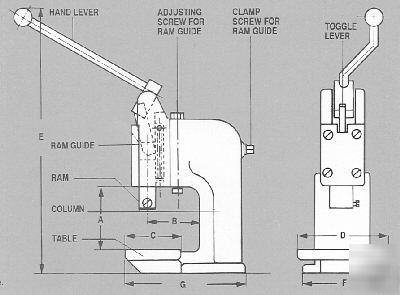

Working Height (Measurement A):2.36" - 5.51"
Throat Depth (Measurement B): 3.15
Table Size (Measurement C & D): 3.94" x 6.42"
Max.Press Height (Measurement E):27.95"
Width (Measurement F):6.42" - Length (Measurement G): 8.74"
Exacta General Product Details
· Rigid, cast-iron construction
· Precise, smooth ram movement
· Accurate alignment of ram bore and table bore
· Accurate depth control through toggle levers
Exacta toggle presses can develop a high compression force of 1320lbs with relatively low pressure on the hand lever. Concentric alignment of the bore eliminates the need for expensive die-set tooling and facilitates quick and exact loading of tools and fixtures. These presses are ideal for operations where the entire force of the toggle transmission is needed only at the end of the stroke. Manufactured to high quality standards—specifically for precision operations ensuring high efficiency and repeat accuracy.
