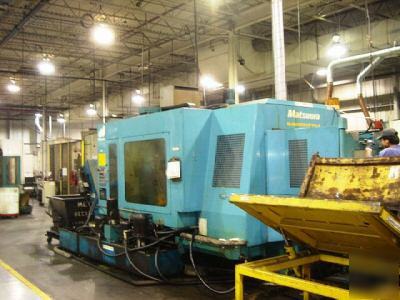

#9813 - matsuura mam 600HF cnc horiz. machining center
MATSUURA MAM 600HF PRECISION CNC HORIZONTAL MACHINING CENTER
From pallet surface to spindle center 3.1" - 24.8"
Pallet center to spindle gauge plane 3.9" - 25.5"
Pallet working surface 15.7" x 15.7"
Pallet (table) loading capacity 400 kg
Pallet surface configuration Tapped holes
Min. table indexing angle 1 Deg.
Table indexing time 3 sec. / 90 deg.
Spindle speed range 30 - 8000 min.
Spindle speed change command S2 Digits direct command
Type of spindle taper hole 7/24 Taper No.40
Spindle bearing inner diameter 3.14"
Spindle orientation Standard electric
Rapid traverse rate (X/Y/Z) 944.8" / min.
Feedrate (X/Y/Z) 0.1" - 393.7"
Min. movement increment (X/Y/Z) 0.001mm
Type of tool shank JIS B 6339 Tool shank 40T
Type of retention knob JIS B 6339 pullstud 40P
When the pockets on both sides are empty 5.9"
Method of tool selection Address code and random selection
Tool changing time: tool-to-tool 2.4 sec.
Tool changing time: chip-to-chip 6.0 sec. 25% of Z axis stroke, spindle at 1000 RPM
Method of pallet change Turn table methods
Pallet (table) loading capacity 400 kg
Spindle drive motor (hi-tech drive) AC11/7.5ks (40% ED/cont.)
X-Axis: Model USAFED-30FS2 AC2.9kw
Y-Axis: Model USAFED-30FS20E AC2.9kw
Z-Axis: Model USAFED-44FS2 AC4.4kw
Coolant pump motor 0.4kwx1, 1.5kwx2
Spindle oil cooler motor 0.4kw
AC 200/220V +/- 10% 3 dia. 50/60 Hz
Except above, transformer is required
Compressed air supply 0.54-0.93 MPA (5-9.5kg/cu. cm)
Hydraulic oil tank capacity 15L
Spindle oil cooler tank capacity 14L
Machine height 2760mm (from ground)
Distance from floor to table surface 1050mm
(2) 15-3/4" x 15-3/4" Pallets, 1 deg. pallet index
60 Position automatic tool changer
